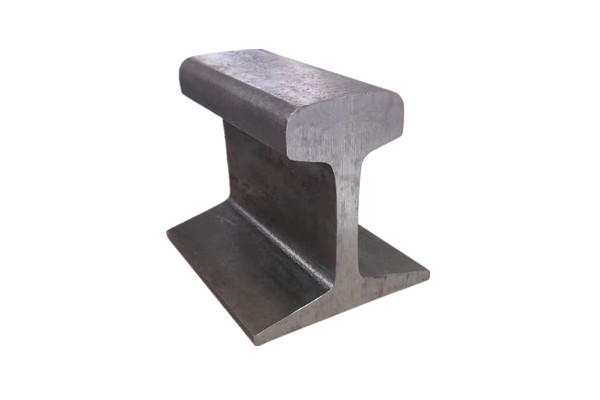

JIS standard rail is a hot rolled rail manufactured in accordance with JIS E1103/1101 and JIS E1103-91.
As a professional supplier, Kingrail Parts can provide JIS rails in various sizes. Such as: JIS 15KG, JIS 22KG, JIS 30KG, etc
SPECIFICATIONS :
Specifications:
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
9kg |
63.5 |
63.5 |
32.1 |
5.9 |
8.94 |
|
10kg |
66.67 |
66.67 |
34.13 |
6.35 |
10.1 |
|
12kg |
69.85 |
69.85 |
38.1 |
7.54 |
12.2 |
|
JIS 15kg |
79.37 |
79.37 |
42.86 |
8.33 |
15.2 |
|
JIS 22kg |
93.66 |
93.66 |
50.8 |
10.72 |
22.3 |
|
JIS 30kg(30A) |
107.95 |
107.95 |
60.33 |
12.3 |
30.1 |
|
JIS 37kg(37A) |
122.24 |
122.24 |
62.71 |
13.49 |
37.2 |
|
40kgN(40N) |
140 |
122 |
64 |
14 |
40.9 |
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
50kg (50PS) |
144.46 |
127 |
67.87 |
14.29 |
50.4 |
|
JIS 50kgN(50N) |
153 |
127 |
65 |
15 |
50.4 |
|
60kg |
174 |
145 |
65 |
16.5 |
60.8 |
|
CR73 |
135 |
140 |
100 |
32 |
73.3 |
|
CR100 |
150 |
155 |
120 |
39 |
100.2 |
