INTRODUCE :

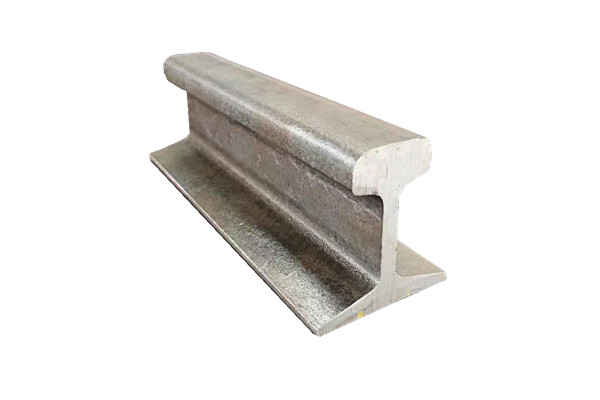

European Standard Rail is a rail manufactured in accordance with EN 13674. It is commonly used in passenger, freight, high-speed and urban rail transit lines.
As a professional manufacturer, Kingrail Parts can provide rails that meet EN 13674-1 and EN 13674-4 standards. Such as: 39E1 (BS80A) rail, 45E3 (RN45) rail, 46E2 (U33) rail, 49E1 (S49) rail, 49E5 rail, 54E1 (UIC54) rail, 54E3 (S54) rail, 54E5 rail, 56E1 rail, 60E1 (UIC60) rail and 60E2 rail, etc.
SPECIFICATIONS :
Specifications:
Standard: EN 13674 – 4 Steel Rail
|
Type of rail |
Standard |
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
Weight(kg/m) |
Length(m) |
|
39E1(BS 80A) |
EN 13674-4 |
67.00 |
138.00 |
125.00 |
12.00 |
39.77 |
12-25 |
|
45E1(BS 90A) |
EN 13674-4 |
66.60 |
142.8 |
127.00 |
13.80 |
45.10 |
12-25 |
|
45E3(RN 45) |
EN 13674-4 |
66.00 |
142.00 |
130.00 |
15.00 |
44.79 |
12-25 |
|
46E2(U33) |
EN 13674-1 |
62.00 |
145.00 |
134.00 |
15.00 |
46.27 |
12-25 |
|
49E1(S49) |
EN 13674-1 |
67.00 |
149.00 |
125.00 |
14.00 |
49.39 |
12-25 |
|
49E2 |
EN 13674-1 |
67.00 |
148.00 |
125.00 |
14.00 |
49.10 |
12-25 |
|
49E5 |
EN 13674-1 |
67.00 |
149.00 |
125.00 |
14.00 |
49.13 |
12-25 |
|
50E1 |
EN 13674-1 |
65.00 |
153.00 |
134.00 |
15.50 |
50.37 |
12-25 |
|
50E2 |
EN 13674-1 |
72.00 |
151.00 |
140.00 |
15.00 |
49.97 |
12-25 |
|
50E4 |
EN 13674-1 |
70.00 |
152.00 |
125.00 |
15.00 |
50.46 |
12-25 |
|
50E6(U50) |
EN 13674-1 |
65.00 |
153.00 |
140.00 |
15.50 |
50.90 |
12-25 |
|
54E1(UIC54) |
EN 13674-1 |
70.00 |
159.00 |
140.00 |
16.00 |
54.77 |
12-25 |
|
54E2(UIC54E) |
EN 13674-1 |
67.00 |
161.00 |
125.00 |
16.00 |
53.82 |
12-25 |
|
54E3(S54) |
EN 13674-1 |
67.00 |
154.00 |
125.00 |
16.00 |
54.57 |
12-25 |
|
56E1(BS113lb) |
EN 13674-1 |
69.85 |
158.75 |
140.00 |
20.00 |
56.30 |
12-25 |
|
60E1(UIC60) |
EN 13674-1 |
72.00 |
172.00 |
150.00 |
16.50 |
60.21 |
12-25 |
|
60E2 |
EN 13674-1 |
72.00 |
172.00 |
150.00 |
16.50 |
60.03 |
12-25 |
Standard: DIN5901 Rail
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
S10 |
70 |
58 |
32 |
6 |
10 |
|
S14 |
80 |
70 |
38 |
9 |
14 |
|
S18 |
93 |
82 |
43 |
10 |
18.3 |
|
S20 |
100 |
82 |
44 |
10 |
19.8 |
|
S24 |
115 |
90 |
53 |
10 |
24.4 |
|
S30 |
108 |
108 |
60.3 |
12.3 |
30.03 |
Please contact us for more information and quotes.
