INTRODUCE :

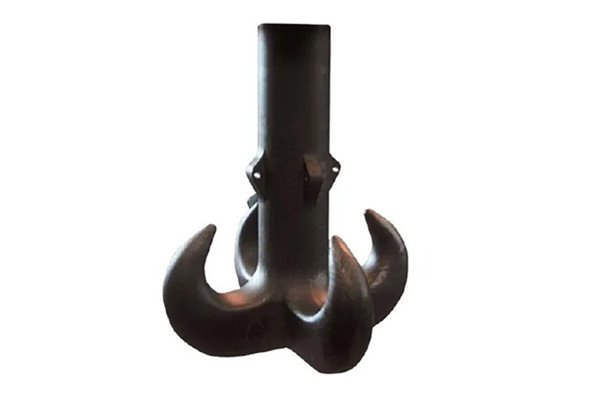

As a professional manufacturer, Kingrail Parts can provide high quality forged quad hooks. These hooks include nuts, crossheads and bearings.
The common load of the quad hooks we produce is 160t~800t, and the maximum load can reach 4000t. The products meet DIN15402-C standard.
We can also customize quad hooks according to customer specifications.
SPECIFICATIONS :
Specifications
|
Hook No. |
Working Load Limit |
a1 |
a2 |
a3 |
b1 |
b2 |
d1 |
e |
f1 |
Weight (kg) |
|
16 |
160 |
112 |
90 |
146 |
95 |
132 |
237 |
508 |
118 |
231 |
|
20 |
200 |
125 |
100 |
163 |
106 |
150 |
265 |
575 |
132 |
325 |
|
25 |
250 |
140 |
112 |
182 |
118 |
170 |
315 |
650 |
150 |
472 |
|
32 |
320 |
160 |
125 |
205 |
132 |
190 |
335 |
730 |
170 |
679 |
|
40 |
400 |
180 |
140 |
230 |
150 |
212 |
375 |
816 |
190 |
1106 |
|
50 |
500 |
200 |
160 |
260 |
170 |
236 |
420 |
908 |
212 |
1321 |
|
63 |
640 |
224 |
180 |
292 |
190 |
265 |
460 |
1019 |
236 |
1838 |
|
80 |
800 |
250 |
200 |
325 |
212 |
300 |
515 |
1150 |
265 |
2523 |
Get more help
We can also supply quad hooks with weights of 1000 tons, 2000 tons, 3200 tons and up to 4000 tons according to standards. The hook handle length can be customized as needed. Please consult us for details.
