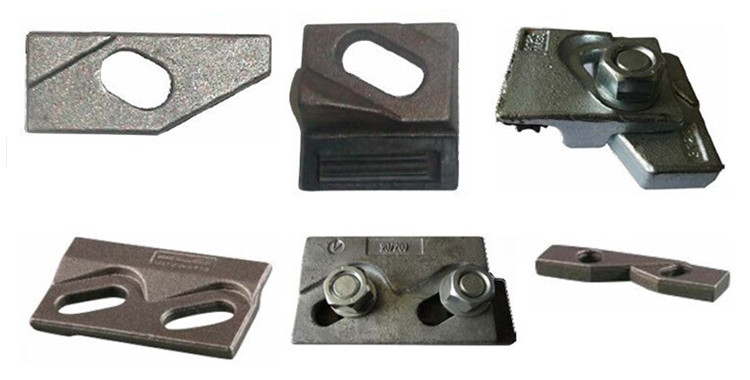

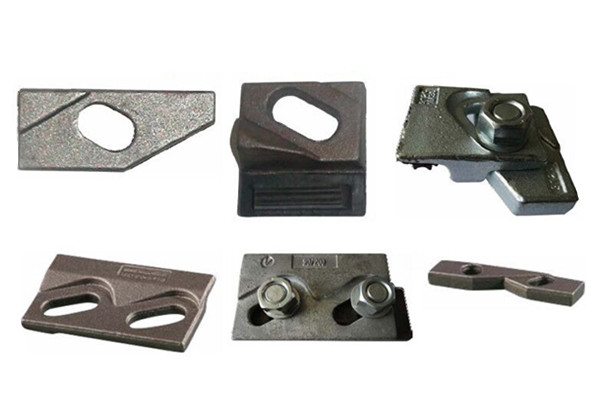

Crane Rail Clips are components used to fix rails in the rail system. All rail clips produced by Kingrail Parts are adjustable and designed to help the rails carry the high loads of cranes.

Kingrail Parts has been producing crane rail clips for many years. With rich experience in producing and supplying rail clips, we design and produce rail clips for different crane rail systems.

* Bolt-type crane rail clips

Bolt-type crane rail clips should be used with bolts. Due to the large load, high-strength bolts are usually used instead of ordinary bolts. Different high-strength bolts (ASTM A325 bolts, ASTM A193, A307 bolts, A490 bolts, etc.) are selected for reinforcement according to different loads.

Features: Suitable for light cranes, easy to install and maintain

Size: 3112, 3116, 3120, 3124, 3224

Applicable crane rail pads: Mk2, Mk7

Applicable crane rails: A65, A100, A120, JIS37, JIS50, JIS60, QU80, QU70, QU120, UIC54, UIC60, etc.

* Welded crane rail clips

The welded crane rail clip is divided into two parts, the lower part is welded to the crane sole plate, and the upper part fixes the crane rail and is connected to the lower part through the track bolts. Due to the welding method, the crane rail clamp can withstand greater lateral displacement force. Therefore, the crane rail clamp can be used for cranes with higher load-bearing capacity and is common in the heavy industry field.

Features: Suitable for heavy-duty cranes

Installation requires professional welding technology

Sizes: 1116, 1216, 9116, 9120, 9124, 9220

Applicable crane rail pads: Mk2, Mk7

Applicable crane rails: A65, A100, A120, JIS37, JIS50, JIS60, QU80, QU70, QU120, UIC54, UIC60, etc.

Get more help

Please contact us for more information and quotes.
