Rail clamps are an important part of the rail system. Crane rail clamps mostly use rail clamps in the form of pressure plates.

Kingrail Parts is a experienced rail system supplier. We are engaged in the design and manufacture of crane rail clamps for more than 20 years.

We design different types of rail clamps according to different types of cranes. Such as gantry crane rail clamps, ETO crane rail clamps, bridge crane rail clamps, etc.

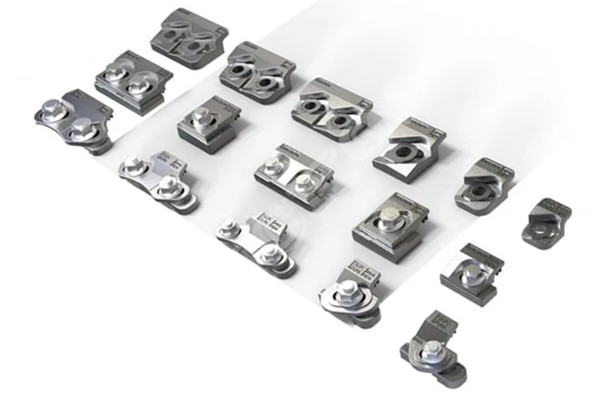

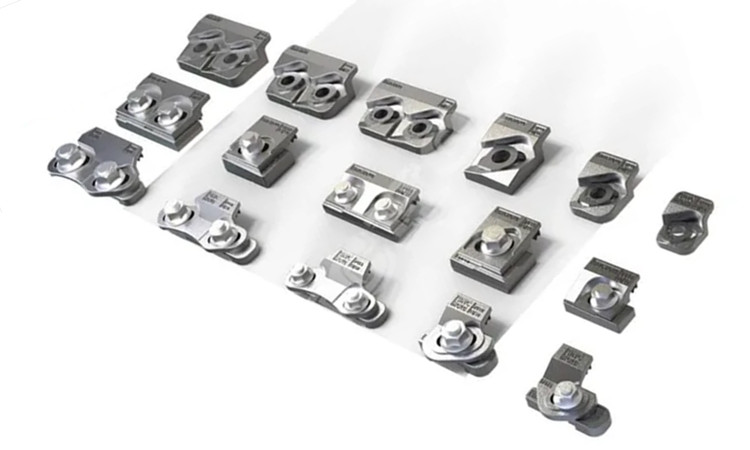

Our rail clamps

1. WJK Welded Rail Clips

WJK Welded Rail Clips are fasteners used to fix rails in rail laying. They are also a type of welded rail fixing clips and are a widely used standard for crane beam rail fixing. It has three categories:

* Light rail clamp: WJK-TG24, WJK-TG30,

* Heavy rail clamp: WJK-TG38, WJK-TG43, WJKTG50,

* Crane rail clamp: WJK-QU80, WJK-QU100, WJK-QU120

2. Rail pressure plate

GDGL clamp is 514 double-hole clamp (for I-beam), GDGL clamp models are divided into GDGL-1 (for 38kg rail) - GDGL-7 (for 120kg rail), the material is Q235B, each set of GDGL clamp includes 1 double-hole clamp, 1 pad, 2 wedge pads, and 2 sets of bolts.

DGL pressure plate is a long hole cast pressure plate (for concrete beams and concrete floors). The DGL pressure plate models are 6a-1 (for 24kg rails) ~ 6a-7 (for 120kg rails). The DGL pressure plate is made of ductile iron and cast steel. The supporting products include pressure plates, upper pressure tongues, special-shaped pads, composite rubber pads, hexagonal bolts, etc.

3. KPO series are rigid fasteners, models are KPO3, KPO6, KPO9

4. MTH pressure plate: M8, M10, M12, M12LA, M12LAS, M16, M16RF, M20, M24.

5. Flexible crane rail clamps. Welded crane rail clamps and bolted crane rail clamps.
