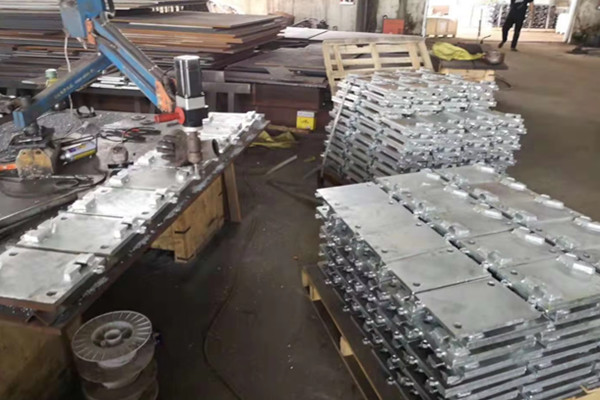

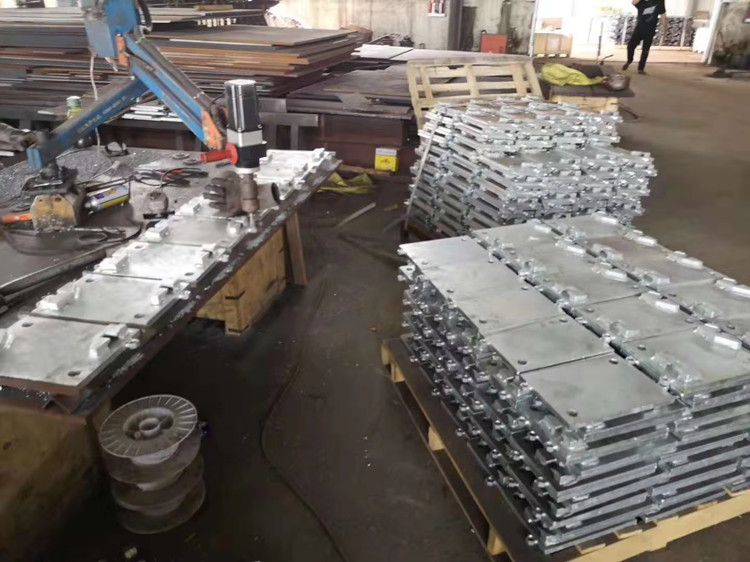

The sole plate is used to support the rail in the crane rail structure. It is common practice to reinforce the concrete with a steel sole plate. Depending on the load and rail type, continuous or discontinuous support can be selected.

As a crane fastener supplier from China, Kingrail Parts can provide various types of sole plates for both continuous and discontinuous support. In addition to standard sole plates, we also provide customized sole plates to meet your special needs.

Continuous sole plate

Length: Standard 5,980 mm.

Width: Varies between 150 and 500 mm.

Thickness: Varies between 12 and 50 mm; the rail sole plays a role.

Material: S235JR, S275JR, S355J0.

Discontinuous sole plate

Length: Varies between 150 and 300 mm.

Width: Varies between 150 and 500 mm.

Thickness: Varies between 12 and 50 mm; the rail sole plays a role.

Materials: S235JR, S275JR, S355J0.

Ribbed base plates

Ribbed base plates are traditionally developed for special applications such as rails, turnouts and derailment safety devices, track shells or bridges.
