INTRODUCE :

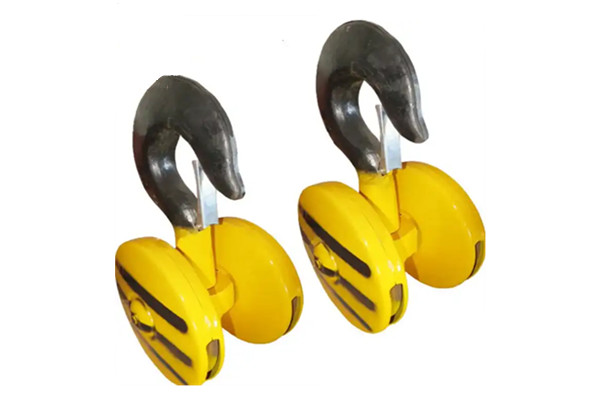

As a professional crane hook manufacturer, Kingrail Parts can produce various crane hooks.
Our crane hooks are forged by high -quality low -carbon steel or low -carbon alloy steel steel.
SPECIFICATIONS :
Specification:
Capacity: 1-600T
Plusal: 1-12 pulleys
Standard: DIN 15401 and DIN 15402
Uses: for overhead cranes, gantry cranes and all kinds hoist
| Type | Dimension (mm) | Wire rope | Dead Weight | ||||||||||
| A | B | H | E | G | L | L1 | C | U | ΦD | Dia.(mm) | Nos | kgs | |
| 3.2T | 637 | 338 | 380 | 245 | 130 | 222 | \ | 50 | 65 | 250 | 11-14 | 4 | 80 |
| 5T | 846 | 382 | 480 | 320 | 236 | \ | 184 | 65 | 85 | 350 | 11-14 | 4 | 100 |
| 10T | 1110 | 370 | 460 | 420 | 240 | \ | 93 | 90 | 120 | 250 | 11-14 | 6 | 200 |
| 16T | 1277 | 512 | 660 | 440 | 285 | \ | 179 | 115 | 150 | 300 | 14-20 | 6 | 330 |
| 20T | 1440 | 516 | 660 | 520 | 335 | 134 | 94 | 130 | 170 | 500 | 16-20 | 8 | 460 |
| 32T | 1730 | 596 | 780 | 610 | 420 | 154 | 108 | 160 | 210 | 610 | 18-22 | 8 | 845 |
| 50T | 2085 | 724 | 880 | 720 | 510 | 161 | 108 | 205 | 270 | 610 | 20-22 | 10 | 1500 |
| 75T | 2335 | 970 | 1012 | 930 | 600 | 185 | 135 | 250 | 320 | 500 | 26-32 | 10 | 2500 |
| 100T | 3130 | 1360 | 1162 | 1100 | 955 | 350 | 131 | 270 | 355 | 800 | 28-34 | 12 | 4200 |
| 200T | 3548 | 1617 | 1090 | 1185 | 1298 | 159 | 264 | \ | 340 | 900 | 30-38 | 16 | 9100 |
