INTRODUCE :

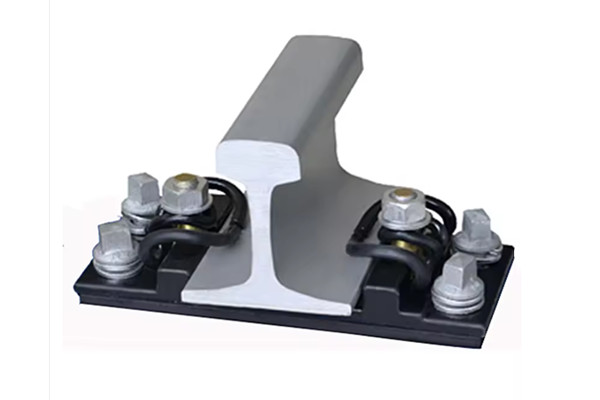

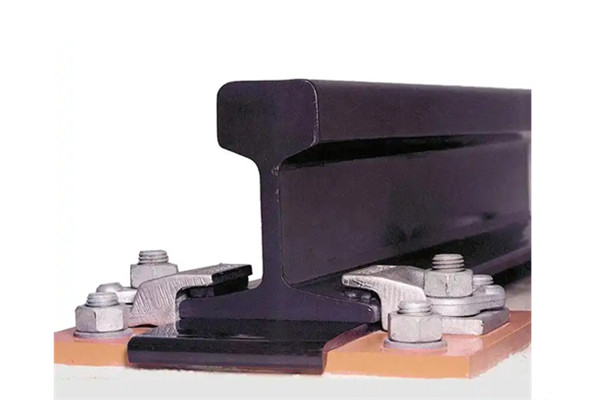

A rail fastening system is a set of fasteners used to connect rails to sleepers. As a professional manufacturer, Kingrail Parts can provide a complete set of SKL 14 rail fastening systems.
The components of our SKL 14 rail fastening system include SKL 14 rail clips, tie plates, screw spikes, rubber pads, washers, plastic pins, rail bolts and nuts.
SPECIFICATIONS :
Specifications:
| No. | Item | Spec. | Material | Coating | Quantity | Unit |
| 1 | W14 Rail Fastening System |
|
|
|
1 | Sleeper Sets |
| 1.1 | Plastic Nylon Screw Dowel | 31*165mm | PA6 |
|
4 | Pcs |
| 1.2 | Rail Pad | 199*158*6mm | EVA |
|
2 | Pcs |
| 1.3 | Angled Guide Plate | Wfp-14k | Reinforced PA66 |
|
4 | Pcs |
| 1.4 | Tension Clamp | SKL-14 | 60Si2Mn, 60Si2Cr, 38Si7 | Electrostatic painting, Darcoet, Hot-dip galvanizing, Sherardizing | 4 | Pcs |
| 1.5 | Sleeper Screw with Plate Washer | Screw: 24*161, Washer:25*25*3.5 | Screw: 35# Plate: Washer: Q235, Screw: Class 5.6 | Darcoet, Hot-dip galvanizing, Sherardizing | 4 | Pcs |
