INTRODUCE :

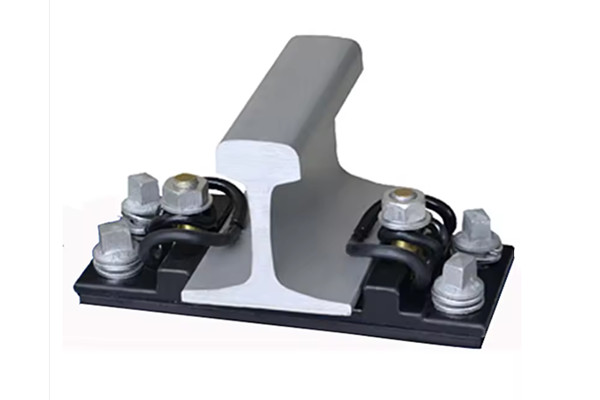

A rail fastening system is a set of fasteners used to connect rails to sleepers. As a professional manufacturer, Kingrail Parts can provide a complete set of Vossloh rail fastening systems.
The components of our Vossloh rail fastening system include SKL rail clips, tie plates, screw spikes, rubber pads, washers, plastic pins, rail bolts and nuts. The common specifications of our Vossloh rail fastening system are SKL 12, SKL 14, SKL 3 rail fastening system, etc.
SPECIFICATIONS :
Specifications:
|
|
SKL tension clip | Ss35 screw spike | Flat washer | Plastic dowel | Guide plate | Rail pad |
|---|---|---|---|---|---|---|
| Pieces required | 2 | 2 | 2 | 2 | 2 | 1 |
| Material | 60Si2CrA, 60Si2CrA, 38Si7 | Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45# | Q235 | HDPE, Reinforced Nylon 66 (PA66) | Reinforced Nylon 66 (PA66) | EVA, or rubber |
| Size | skl1,skl3,skl12,skl14 | M24×150mm | Uls7 | For different sizes of screw spike | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered |
|
Contact us
Do you have a railway project that we can help with? Please contact us. Our railway engineers will give you the best advice.
