The crane rail A65 is made in line with the European standard DIN 536 P1: 1991, and the mass is 43,10 kg/m.
Dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| A65 | DIN 536 | 75 | 175 | 65 | 38 | 54,90 | 43,10 |

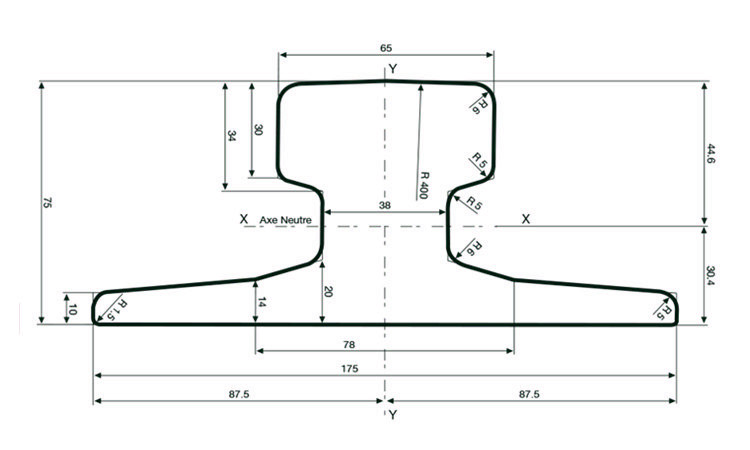

Drawing:
A65 Rail Dimensions and DWG
