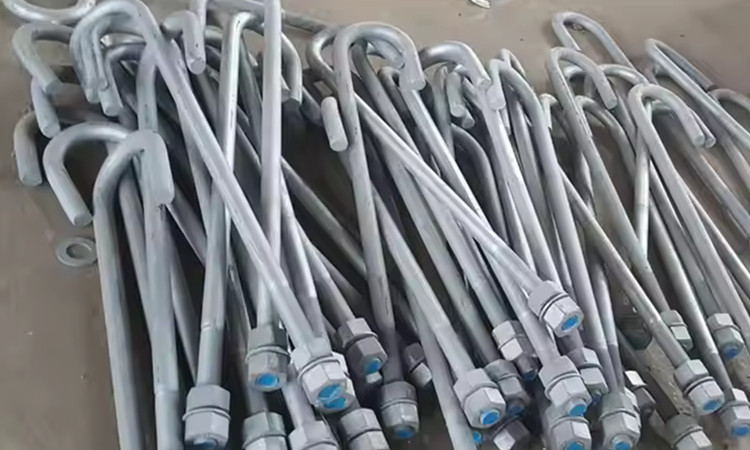

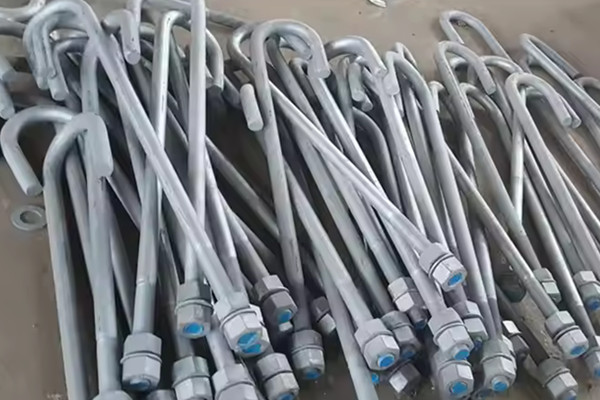

J bolts are commonly used to fasten walls to concrete. Our J bolts are made of alloy steel with a zinc coating.
As a professional supplier, Kingrail Parts can produce galvanized and stainless steel J bolts, as well as custom J bolts to almost any ASTM specification.
We can also provide J bolts to your specifications in stainless steel and a variety of materials.

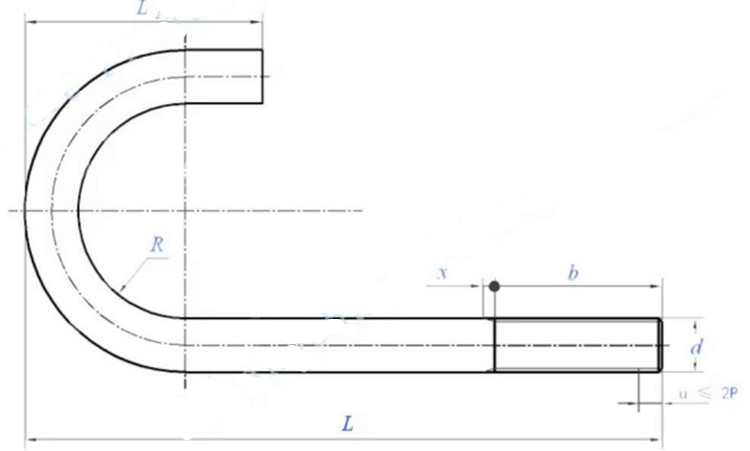

Specifications:
|
Thread Size |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
M36 |
M42 |
M48 |
M56 |
M64 |
M72 |
|
|
P |
Pitch |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
6 |
|
b |
tol(+2P0) |
31 |
36 |
40 |
50 |
58 |
68 |
80 |
94 |
106 |
120 |
140 |
160 |
180 |
|
L₁ |
48 |
60 |
72 |
96 |
120 |
144 |
180 |
216 |
252 |
288 |
336 |
384 |
432 |
|
|
R |
16 |
20 |
24 |
32 |
40 |
48 |
60 |
72 |
84 |
96 |
112 |
128 |
144 |
|
|
X |
max |
3.2 |
3.8 |
4.3 |
5 |
6.3 |
7.5 |
9 |
10 |
11 |
12.5 |
14 |
15 |
15 |
Contact us
Please contact us for more information and a quote.
