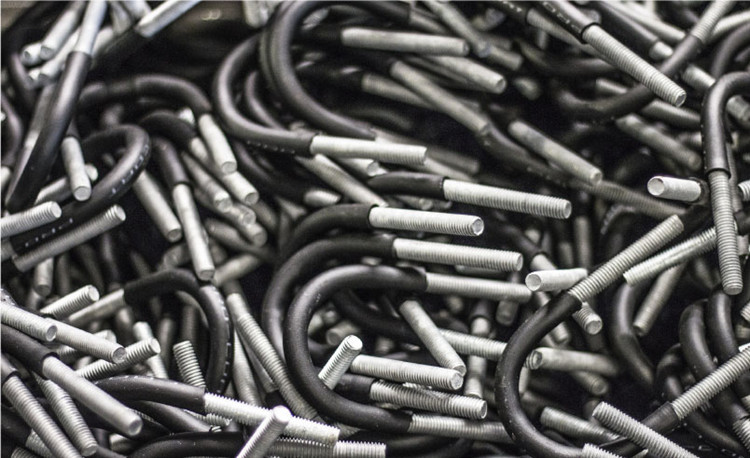

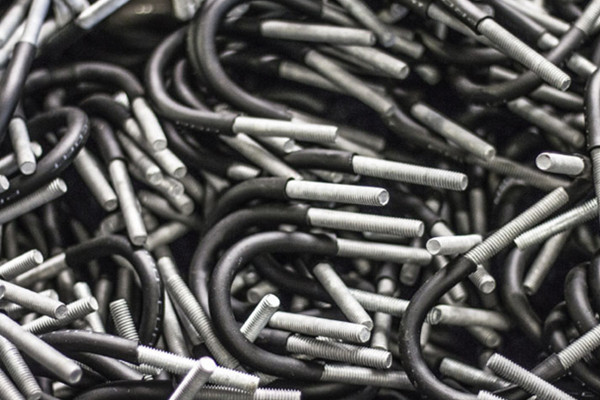

U-bolts are "U" shaped bolts with mechanical threads on both ends for use with nuts.
As a bolt supplier from China. Kingrail Parts offers a wide selection of U-bolts in diameters from 3/8-16" to 1-8" and up to 40" in length.
We specialize in providing custom U-bolts and all elbow bolts to our customers, manufactured to your specifications.
Whether you require plain, galvanized, hot dipped galvanized, Xylan, 303 or 316 stainless steel, AFT can meet your specific U-bolt requirements.
Specifications:
|
Pipe |
Description |
U-Bolt |
Item |
|
|||||
|
Nomlnal |
Outslde |
Thread |
(A) |
Centres |
(M) |
Part No. |
|||
|
NB |
mm |
|
mm |
mm |
mm |
mm |
kg |
Carbon |
Stainless |
|
15 |
21.3 |
15NB Insulated U-Bolt Clamp |
M6 |
21 |
37 |
60 |
0.05 |
150001 |
150015 |
|
20 |
26.9 |
20NB Insulated U-Bolt Clamp |
M6 |
27 |
43 |
65 |
0.06 |
150002 |
150016 |
|
25 |
33.7 |
25NB Insulated U-Bolt Clamp |
M6 |
35 |
51 |
65 |
0.06 |
150003 |
150017 |
|
32 |
42.4 |
32NB Insulated U-Bolt Clamp |
M10 |
43 |
69 |
77 |
0.21 |
150004 |
150018 |
|
40 |
48.3 |
40NB Insulated U-Bolt Clamp |
M10 |
49 |
75 |
80 |
0.22 |
150005 |
150019 |
|
50 |
60.3 |
50NB Insulated U-Bolt Clamp |
M10 |
|
87 |
90 |
0.25 |
150006 |
150020 |
|
65 |
76.1 |
65NB Insulated U-Bolt Clamp |
M12 |
76 |
102 |
95 |
0.38 |
150007 |
150021 |
|
80 |
88.9 |
80NB Insulated U-Bolt Clamp |
M12 |
89 |
115 |
100 |
0.41 |
150008 |
150022 |
|
100 |
114.3 |
100NB Insulated U-Bolt Clamp |
M12 |
115 |
141 |
110 |
0.46 |
150009 |
150023 |
|
150 |
168.3 |
150NB Insulated U-Bolt Clamp |
M16 |
168 |
210 |
180 |
1.23 |
150010 |
150024 |
|
200 |
219.1 |
200NB Insulated U-Bolt Clamp |
M16 |
220 |
262 |
199 |
1.43 |
150011 |
150025 |
|
250 |
273.0 |
250NB Insulated U-Bolt Clamp |
M16 |
273 |
315 |
230 |
1.70 |
150012 |
150026 |
|
300 |
323.9 |
300NB Insulated U-Bolt Clamp |
M16 |
325 |
366 |
255 |
1.88 |
150013 |
150027 |
|
350 |
355.6 |
350NB Insulated U-BoltClamp |
M16 |
357 |
399 |
300 |
2.20 |
150014 |
150028 |
Contact us
Please contact us for more information and quotes.
