The A100 crane rail is mainly used for the the laying of transportation roads for super heavy containers such as ports and docks, and the laying of transportation routes for large machinery and equipment.
The A100 crane rail is manufactured in accordance with the DIN standard (German Standard Association), with a length of 12 meters.
Dimensions:
A100 steel crane rails, 100mm width, total height of 95mm, bottom width of 200mm, and 60mm width of the abdomen.
|
Type |
Dimension (mm) |
Weight (kg/m) |
Material |
Length (m) |
|||
|
Head |
Height |
Bottom |
Web |
||||
|
A100 |
100 |
95 |
200 |
60 |
74.3 |
900A |
6-12 |

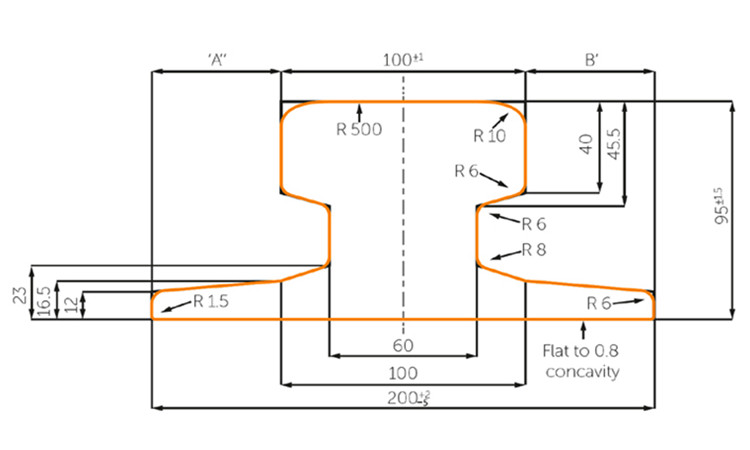

Drawings:
