The adjusted crane rail clip assembly is a flexible fixed solution designed for heavy rail systems. The pressure plate material is made of Q235 or Q345 steel heat forging, which can withstand a large horizontal side force.
Crane rail fixing clip supplier in China

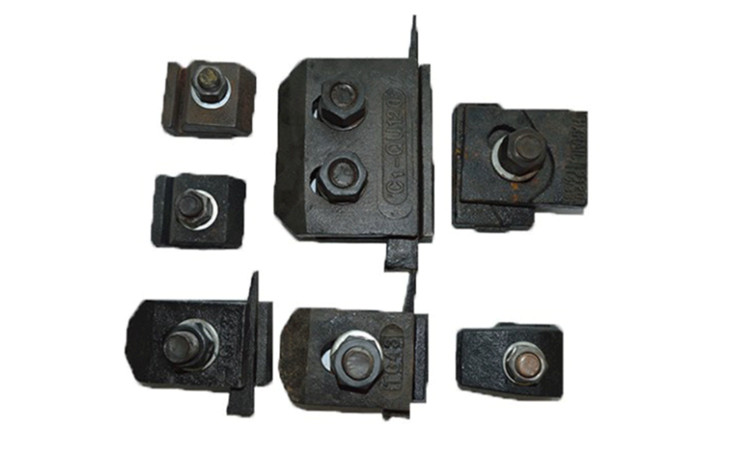

Kingrail Parts specializes in supply crane rail clips. It is mainly divided into welded rail clips and bolted rail clips. The bolted rail clips are easy to install and use. They are mainly used for light rails. The welded rail clip can carry a larger load and suitable for heavy rails.
9120 Clip:
|
Type |
H1 |
H2 |
H3 |
weight |
|
|
9120/15/38 |
30 |
38 |
56 |
1.55kg |
|
|
rubber block thickness |
WITH PAD |
WITHOUT PAD |
|||
|
C |
C1 |
10 |
C3 |
17 |
|
|
C2 |
14 |
C4 |
21 |
||
9120 clip
|
Rail Model |
A |
B mm |
H mm |
1. CLIP REFERENCE FOR RAIL WITH PAD |
2. CLIP REFERENCE FOR RAIL WITHOUT PAD* |
|
P50 |
132 |
70 |
152 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
P60 |
150 |
73 |
176 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
QU70 |
120 |
70 |
120 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
QU80 |
130 |
80 |
130 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
QU100 |
150 |
100 |
150 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
QU120 |
170 |
120 |
170 |
9120/15/38 (C1) |
9120/15/38 (C3) |
|
A100 |
200 |
100 |
95 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
A120 |
220 |
120 |
105 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
A150 |
220 |
150 |
150 |
9120/15/38 (C1) |
9120/15/38 (C3) |
|
89kgCR |
178 |
102 |
114 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
MRS86 |
165 |
102 |
102 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
MRS87 |
152 |
102 |
152 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
MRS125 |
180 |
120 |
180 |
9120/15/38 (C1) |
9120/15/38 (C3) |
|
GCR183 |
280 |
75 |
120 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
ISCR100 |
150 |
102 |
150 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
ISCR120 |
170 |
120 |
170 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
JIS50 |
127 |
63 |
145 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
JIS60 |
145 |
64 |
174 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
CR73 |
140 |
100 |
135 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
CR100 |
155 |
120 |
150 |
9120/15/38 (C1) |
9120/15/38 (C3) |
|
86kg |
AS16 |
102 |
102 |
9120/15/38 (C2) |
9120/15/38 (C4) |
|
UIC54E |
125 |
66 |
161 |
9120/15/38 (C2) |
9120/15/38 (C4) |
In order to better serve the different needs of customers, our technical team can provide suggestions and support to help every customer optimize their track choices to minimize the cost of life cycle.
We provide suitable rail parts, such as fish plates, rail clips, bolts and nuts. We provide rail processing, such as 45 degrees oblique cutting, welding process, milling process, and special profile processing. Our engineers help customers design railway lines as required, and build mining railway lines and crane mobile lines.
The technical support provided by Kingrail Parts can ensure that each rail we delivered has the best performance during its entire service life.
