INTRODUCE :
As a professional crane wheel manufacturer. Kingrail Parts can design appropriate crane wheels according to the needs of customers.
We can produce single flange wheel and double flange wheel for bridge and gantry cranes.
SPECIFICATIONS :
Our products:
1. Single flange wheel for bridge and gantry crane
The height of the wheel flange is about 20mm-25mm;
The wheel material is ZG340-640 cast steel or ZG-50simn low alloy steel.
ZG340-640 cast steel wheels, rolling surface hardness is about 300-350HB, ZG-50simn, and rolling surface hardness is about 420-480HB.
The mechanical properties, accuracy and roughness of materials meet the regulations of JB/T 6392-2008.

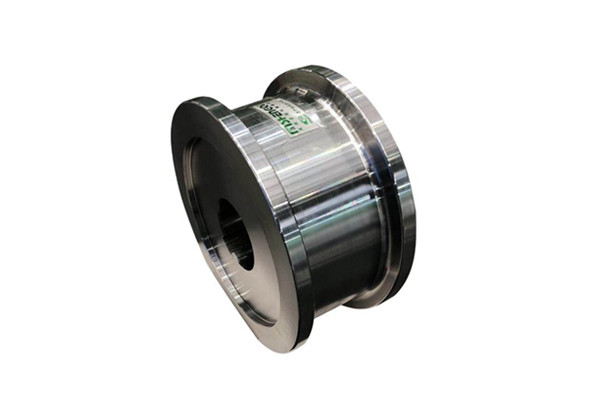

2. Double flange wheel for bridge and gantry crane
The height of the wheel flange is about 25mm-30mm;
The wheel material is ZG340-640 cast steel or ZG-50Simn low alloy steel.
For ZG340-640 cast steel wheels, the rolling surface hardness is about 300-350HB, and for ZG-50Simn, the rolling surface hardness is about 420-480HB.
The mechanical properties, accuracy and roughness of materials meet the regulations of JB/T 6392-2008.
Contact us
Please contact us to get more information and quotations.
