INTRODUCE :

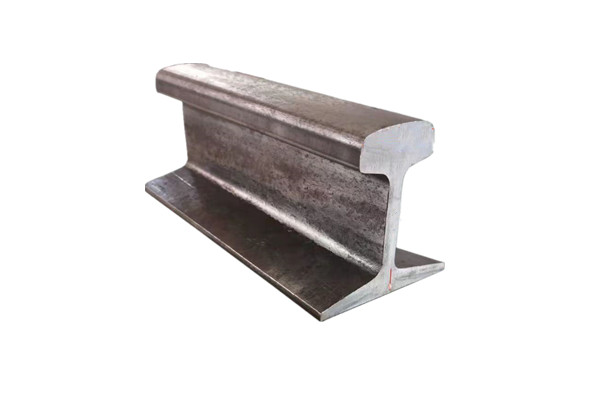

49E1/ S49 rails are mainly used for transport rails and can also be used for underground mining.
Kingrail Parts can make 49E1 (S49) rails according to European standards.
SPECIFICATIONS :
Specification:
Size: 49e1 rail
Standard: EN 13674 - 4
Material: R200, R260, R260MN, R350HT
Length: 5m ~ 25m or other lengths according to customer requirements

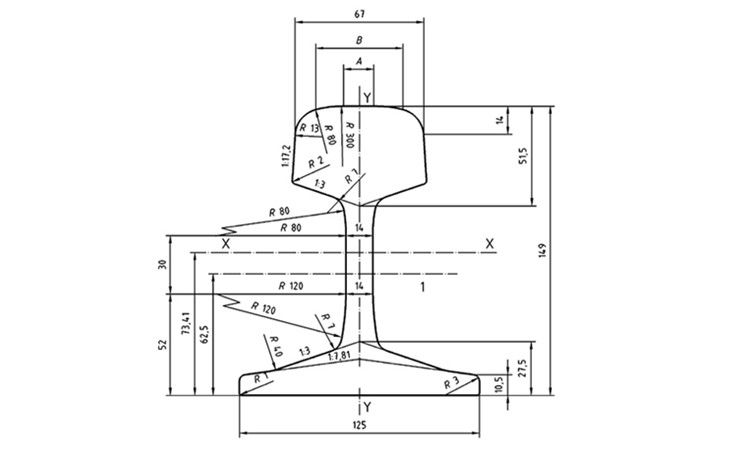

Drawing:
| Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
| 49E1(S49) | 149.00 | 125.00 | 67.00 | 14.00 | 49.39 |
Manufacturing process
Raw materials -- Pretreatment -- Refining -- Vacuum Degassing -- Continuous Bloom Casting -- Rolling -- Heat treatment -- Straightening -- Inspection -- Sawing and drilling -- shipping
