INTRODUCE :

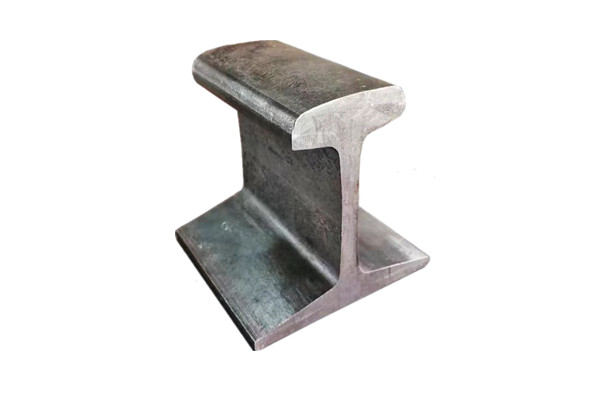

60E1 UIC60 rails are mainly used as heavy vehicle transport railway rails and can also be used in underground mining and crane industries.
Kingrail Parts provides EN standard rails, including 60E1 rails, UIC60 rails, 54E1 rails, UIC54 rails, etc.
SPECIFICATIONS :
Specification:
| Type of rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| 60E1 (UIC60) | EN 13674 - 1 | 172,00 | 150,00 | 72,00 | 51,00 | 16,50 | 76,70 | 60,21 |

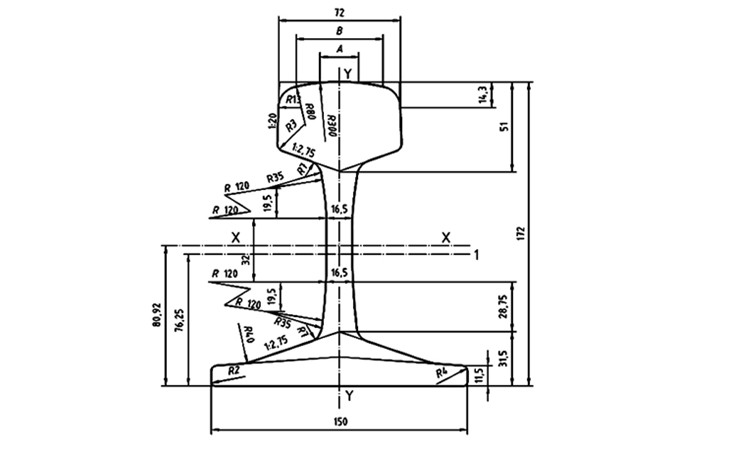

Drawing:
Manufacturing process
Raw materials--Pretreatment--Refining--Vacuum Degassing--Continuous Bloom Casting--Rolling--Heat treatment--Straightening--Inspection--Sawing and drilling--shipping
Contact us
Please contact us for more information and quotations.
