INTRODUCE :
Kingrail Parts can provide various sizes of DIN3570 U Bolts.
SPECIFICATIONS :

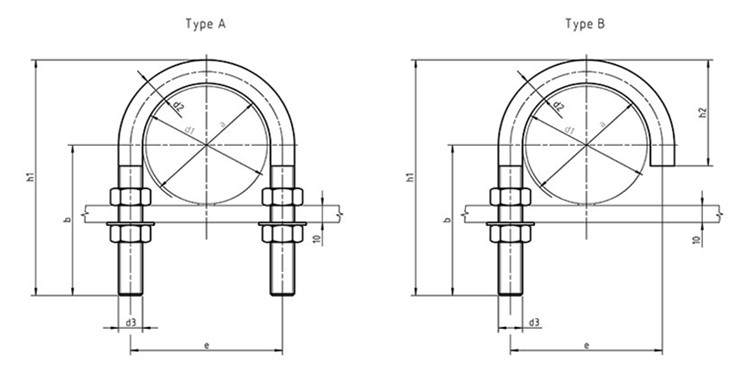

Legend:
b - length of the thread (at least)
h - height
d3 - the nominal diameter of the thread
e - pitch
d2 - diameter of the screw shank
NW - diameter pipe
a - Inner diameter
Makings:
Steel: st37
dimensions in mm
|
Size |
23 |
30 |
38 |
46 |
52 |
|
D1 |
20 - 21 |
25 - 26,9 |
30 - 33,7 |
38 - 42,4 |
44,5 - 48,3 |
|
B1 |
30 |
40 |
40 |
50 |
50 |
|
D2 |
10 |
10 |
10 |
10 |
10 |
|
D3 |
M10 |
M10 |
M10 |
M10 |
M10 |
|
E |
33 |
40 |
48 |
56 |
62 |
|
H1 |
60 |
70 |
76 |
86 |
92 |
|
Size |
64 |
82 |
94 |
120 |
148 |
|
D1 |
57 - 60,3 |
76,1 |
88,9 |
108 - 114,3 |
133 - 139,7 |
|
B1 |
50 |
50 |
50 |
60 |
60 |
|
D2 |
12 |
12 |
12 |
16 |
16 |
|
D3 |
M12 |
M12 |
M12 |
M16 |
M16 |
|
E |
76 |
94 |
106 |
136 |
164 |
|
H1 |
109 |
125 |
138 |
171 |
191 |
|
Size |
176 |
228 |
282 |
332 |
|
|
D1 |
159 - 168,3 |
216 - 219,1 |
267 - 273 |
318 - 323,9 |
|
|
B1 |
60 |
70 |
70 |
70 |
|
|
D2 |
16 |
20 |
20 |
20 |
|
|
D3 |
M16 |
M20 |
M20 |
M20 |
|
|
E |
192 |
248 |
302 |
352 |
|
|
H1 |
217 |
283 |
334 |
385 |
