The QU100 crane rail is mainly used for runways of ports, factory and overhead cranes. In China, the crane rail includes QU70, QU80, QU100 and QU120. It is also called ISCR70, ISCR80, ISCR100 and ISCR120 crane rails in India. In Russia, it is called KP70, KP80, KP100 and KP120 Crane Rail.
The QU100 crane rail is mainly used in the crane industry. The QU100 rail can also be used for large engineering, dock hanging containers, and laying of large -scale mechanical equipment transportation lines. The crane rail is designed to carry heavy objects and is used for the laying of heavy machine tracks for port buildings. Compared with the heavy rail of the railway, the height of the crane rail is low, and the size of the head width and thick waist is large.
Specification:
Material: U71MN
Weight: 88.96kg/m
Length: 12M
Execution standard: YB/T5055-2014
| type | weight (kg/m) | material | length (m) |
| QU100 | 88.96 | U71Mn | 12 |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 150 | 150 | 100（108） | 38 |

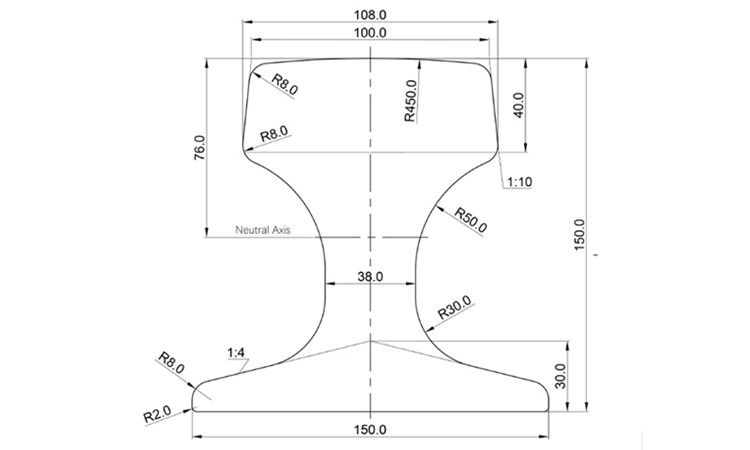

Drawing:
