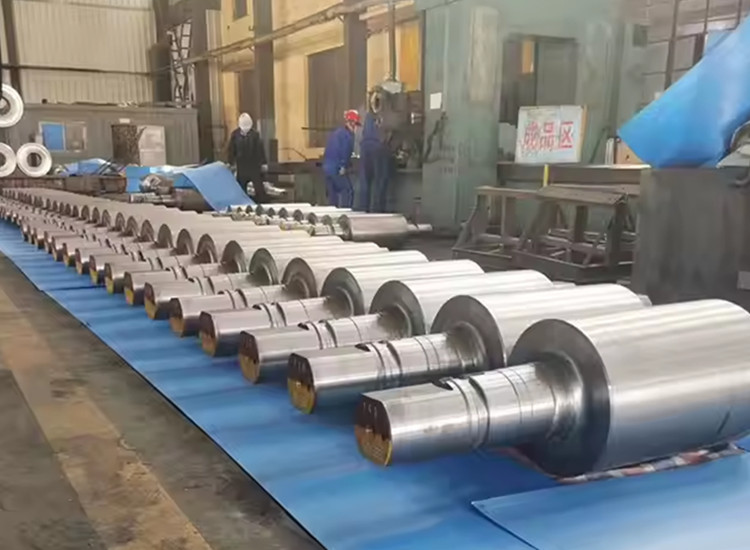

Kingrail Parts in Maanshan, China manufactures a full range of mill rolls - spun cast iron, cast steel and forged steel.
We produce cast and forged rolls for the flattest hot and cold rolling applications. We are currently the largest producer of cast work and backup rolls in China.
1. Vertical spun cast iron and high chrome work rolls
ICDP, enhanced ICDP and high chrome
19.6 – 39.3 inches in diameter
Maximum overall length 360 inches
Maximum finished product weight 39.6 tons
2. Horizontal spun cast iron, high chrome, HSS work rolls and spun cast iron support rolls
ICDP, high chrome, HSS and Synergy roughing cutters
19.6 – 53.1 inches in diameter
Maximum body length 176.9 inches
Maximum overall length 360 inches
Maximum finished product weight 66.1 tons
High speed steel
Synergy 100
3. Roughing mill work rolls
Synergy 500 and 700
4. Forged steel work rolls
3 - 5 Cr alloy forged steel
15.7 – 31.4 inches in diameter
Maximum overall length 220 inches
Maximum finished product weight 13.2 tons
5. Cast Steel Support Rolls
Integral Alloy Cast Steel
Maximum Diameter 72 Inches
Maximum Overall Length 360 Inches
Maximum Finished Product Weight 75 Tons
6. Forged Steel Support Rolls
3 - 5 Cr Alloy Forged Steel
Diameter 50 – 82.6 Inches
Maximum Overall Length 360 Inches
Maximum Finished Product Weight 166 Tons
7. Cast Iron Support Rolls
Static Cast Iron
Maximum Diameter 62 Inches
Maximum Overall Length 360 Inches
Maximum Finished Product Weight 59.5 Tons
8. Plate Mill Support Rolls
Forged Steel
Maximum Diameter 82.6 Inches
Maximum Overall Length 360 Inches
Maximum Finished Product Weight 166 Tons
9. Plate Mill Work Rolls
Horizontal Rotary Cast ICDP and High Chrome Iron
Maximum Diameter 53.1 Inches
Maximum Overall Length 360 Inches
Maximum Finished Product Weight 59.5 Tons
Get More Help
If you have a rolling mill rolls project, please contact us. We will provide you with the best solution.
