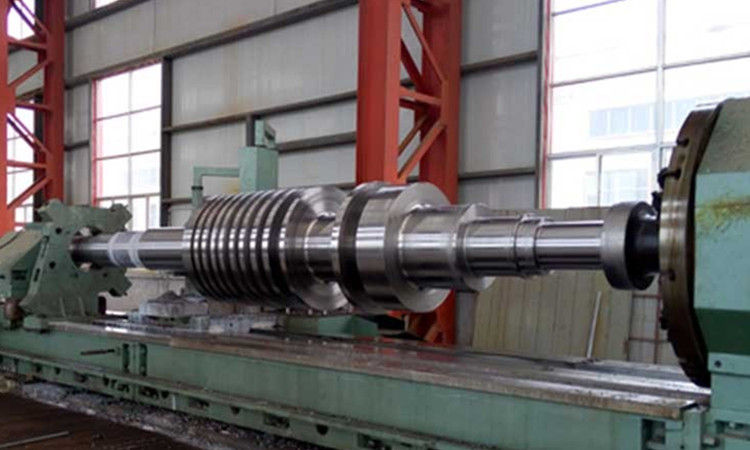

Kingrail Parts is a leading manufacturer of forged rotor shafts for various industrial applications. Our forged rotor shafts are carefully crafted with high-quality materials and advanced forging technology to ensure excellent strength, durability and performance.
We offer a wide range of customization options, including various materials, sizes and surface treatments to meet the specific needs of our customers.
Specifications
|
Material: |
Vacuum Degassed Ingot of Carbon Steel & Alloy steel & Stainless Steel and etc.; 13, 4130, 4140, 4150, 4340, 1035, 1045, EN9, EN19, EN24, EN31, 51200, SUJ2, 100Cr6, K310, 34CrNiMo6, 36CrNiMo4, 42CrMo4, 86CrMoV7, C35E, C40E, C45E, etc. |
||
|
Forging Equipments: |
1.8tons, 6tons Electrical Hydraulic Hammer; 2.5ton, 1ton, 750KGS, 560KGS, 200KGS air hammers |
||
|
Heat treatment: |
Normalized/quench and temper/annealed/solution treatment/induction harden and etc. |
||
|
Machining Equipment: |
1. Horizontal Turning Machine |
||
|
2. Vertical Turning Machine |
|||
|
3. Milling Machine |
|||
|
4. Drilling Machie |
|||
|
5. CNC etc. |
|||
|
Quality System: |
ISO9001: 2008 |
||
|
Cetificate: |
PED 97/23/EC, ABS, BV, GL, DNV |
||
|
Products Type: |
Maximum Diameter(mm) |
Max. length(mm) |
Maximum weight(ton) |
|
Shaft |
400 |
4000 |
10 |
|
Forging Ratio: |
≥ 3.5 |
||
|
Annual Production Ability: |
30000 tons |
||
|
Ultrasonic Test: |
Sep 1921-84 - Test Group 3 Class D or ASTM A388 - FBH max 4mm, customized |
||
|
QA & DOC: |
EN10228 3.1 Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report (according to EN10228-3, SA388, Sep 1921 etc. ) Heat Treatment Report, Dimensions Check Report |
||
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, 120 workers and 20 technicians
2. Our forged shaft products meet international standards such as BS, UIC, DIN, ASTM, AISI, etc.
3. Certified by ISO9001-2008
4. Customized according to your specific requirements
5. Our forged shaft products are exported to Asia, Europe, America, the United States, Germany, the United Kingdom, France, Thailand, Vietnam and other places.
Get more help
If you need forged shafts, please contact us. Our engineers will provide you with the best forged rotor shaft solutions.
