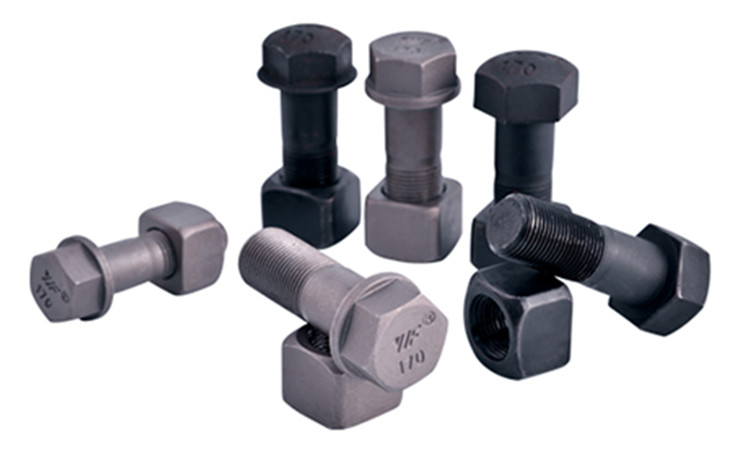

Segment bolt nut is a threaded fastener. It is widely used in bulldozers, power equipment, electromechanical machinery products, ships, water conservancy projects, and even chemical experiments.
Kingrail Parts can produce many types of segment bolts. We can also provide non-standard customized bolts and nuts to meet your various needs.
Specifications
NO. | OEM PN# | Dimension | BOLT W | NUT W |
1 | SM9/16*1 14/25 | 9/16''*1 14/25''UNF | 0.061 | 0.018 |
2 | 9W9265+8H5724 | 1/2''*1 1/2''UNF | 0.057 | 0.017 |
3 | 3S8182+7H3607 | 5/8''*1 7/8''UNF | 0.115 | 0.047 |
4 | 6V0937+7H3607 | 5/8''*2 7/64''UNF | 0.121 | 0.047 |
5 | 1171617+7H3608 | 3/4''*1 15/16''UNF | 0.248 | |
6 | SM3/4*2 | 3/4''*2''UNF | 0.182 | 0.064 |
7 | 5P4130+7H3608 | 3/4''*2 5/8''UNF | 0.209 | 0.064 |
8 | SM3/4*2 7/25 | 3/4''*2 7/25''UNF | 0.202 | 0.064 |
9 | 3S0336+7H3608 | 3/4''*2 3/8''UNF | 0.219 | H:0.07 |
10 | 5P7665+7H3608 | 3/4''*2 1/2''UNF |
|
|
11 | SM3/4*2 16/25 | 3/4''*2 16/25''UNF | 0.273 | |
12 | 9S2727+7H3609 | 7/8''*2 9/16''UNF | 0.361 | 0.103 |
14 | 9W8328+7H3609 | 7/8''*3 3/16''UNF |
|
|
15 | 7T1248+7H3609 | 7/8''*3''UNF |
|
|
13 | 5P0233+2M5656 | 1''*3''UNS |
|
|
16 | 5P5422+2M5656 | 1''*3 5/8''UNS | 0.545 | 0.15 |
17 | 09203-11860+01803-11824 | M18*1.5*60 | 0.2 | 0.07 |
18 | SM22070 | M22*1.5*70 | 0.33 | 0.113 |
19 | SM22070 | M22*1.5*70 | 0.374 | 0.109 |
20 | 154-27-12320+01803-32228 | M22*1.5/22.9*70.4 | 0.436 | |
21 | SM24049 | M24*1.5*49 | 0.19 | 0.07 |
22 | SM24068 | M24*1.5*68 | 0.37 | 0.143 |
23 | 155-27-12181+01803-02228 | M22*1.5*71 |
|
0.102 |
24 | SM24079 | M24*1.5*79 | 0.506 | 0.16 |
25 | 178-27-11150+01803-02430 | M24*1.5/26*80 |
|
|
26 | 195-27-12632+01803-02430 | M24*1.5/26*90 | 0.56 | 0.16 |
27 | 195-27-31641+195-27-31871 | M24*1.5*90 |
|
|
28 | SM27095 | M27*2*95 | 0.69 | 0.22 |
29 | 19M8002 | M20*55 | 0.19 |
|
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, with 120 workers and 20 technicians
2. Our bolts can meet international standards such as BS, UIC, DIN, etc.
3. Passed ISO9001-2008 certification
4. Customized according to your specific requirements.
5. Our bolt products are exported to Asia, Europe, America, the United States, Germany, France, the United Kingdom, Thailand and other places.
Get more help
If you need segment bolts, please contact us. We can provide you with the best bolt solution.
