Kingrail Parts is a leading manufacturer and OEM supplier of shank hooks, Ramshorn hooks and crane hooks in China. Our crane hooks can meet IS, BSS, DIN and other standards.
We can also provide special hooks as per customer's specifications and drawings.

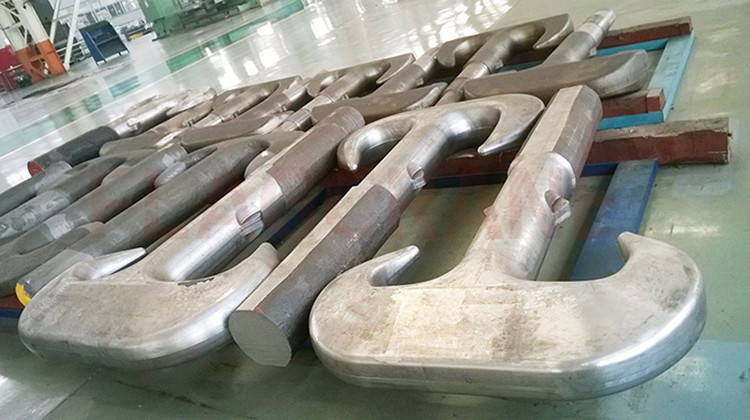

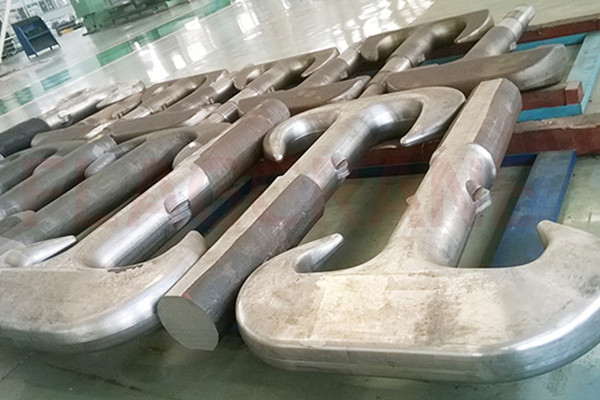

* Machined shank hooks
Meet the requirements of IS 3815 and 15560
Material traceability, NDT test and proof load test.

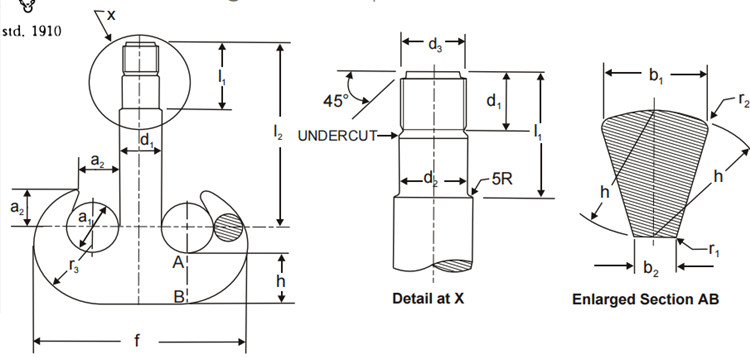

* Ramshorn hook IS5749
Meet the requirements of IS 5749
|
RatingW(tons) |
40 |
50 |
80 |
100 |
125 |
160 |
200 |
250 |
|
ProofloadP(tons) |
70 |
85 |
120 |
145 |
170 |
215 |
266 |
333 |
|
a1(28/P) |
125±4 |
140±4 |
180±5 |
200±6 |
224±7 |
250±8 |
280±9 |
315±10 |
|
a2(0.8a1) |
100±3 |
112±3 |
140±4 |
160±5 |
180±5 |
200±6 |
224±7 |
250±8 |
|
b1(0.85a1) |
100+11 |
118+12 |
150+16 |
170+18 |
190+20 |
212+22 |
236+25 |
265+28 |
|
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
b2(0.335a1) |
43+5 |
48+5 |
60+6 |
7+7 |
75+8 |
85+9 |
95+10 |
106+11 |
|
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
d1(0.85a1) |
106±5 |
118±6 |
150±8 |
170±9 |
190±10 |
212±11 |
236±12 |
265±13 |
|
d2(0.71a1) |
90 |
100 |
125 |
140 |
160 |
180 |
200 |
225 |
|
d3 |
M90x6 |
M100x6 |
M125x6 |
M140x6 |
M160x6 |
M180x6 |
M200x6 |
M225x6 |
|
f(4.25a1) |
530 |
600 |
750 |
850 |
950 |
1060 |
1180 |
1320 |
|
h(1.06a1) |
132+13 |
150+15 |
190+19 |
212+21 |
236+24 |
265+27 |
300+30 |
335+34 |
|
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
l |
188 |
207 |
260 |
282 |
325 |
357 |
305 |
455 |
|
1 |
||||||||
|
l2# |
510 |
572 |
705 |
790 |
896 |
1005 |
1130 |
1260 |
|
m,Min |
80 |
90 |
112 |
125 |
140 |
160 |
180 |
200 |
|
r1(0.125a1) |
16 |
18 |
22 |
25 |
28 |
32 |
36 |
40 |
|
r2(0.1a1) |
13 |
14 |
18 |
20 |
22 |
25 |
28 |
32 |
|
r3(1.18a1) |
150 |
170 |
212 |
236 |
265 |
300 |
335 |
375 |

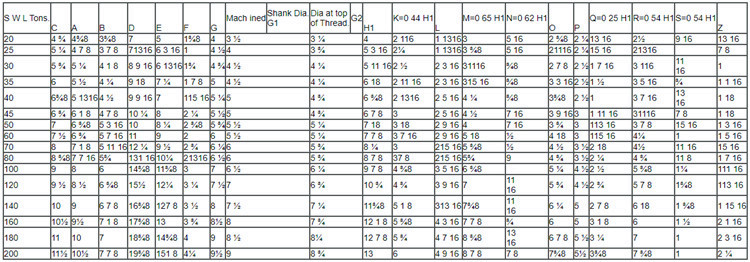

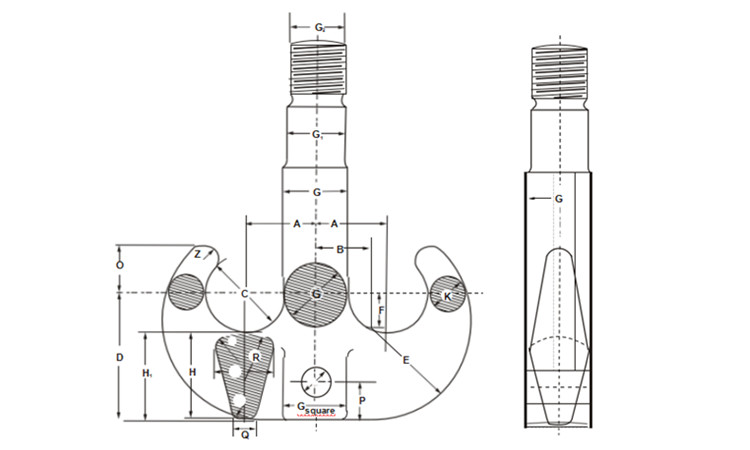

* Ramshorn hook BS3017
Meet the requirements of BS 3017
Contact us
Please contact us for more information and quotation.
