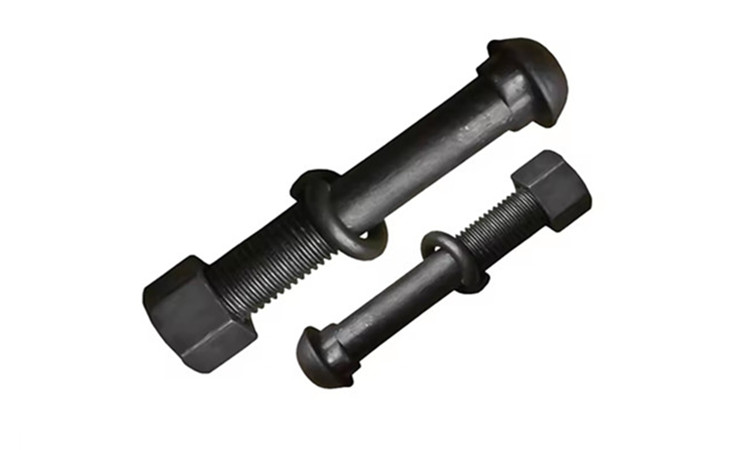

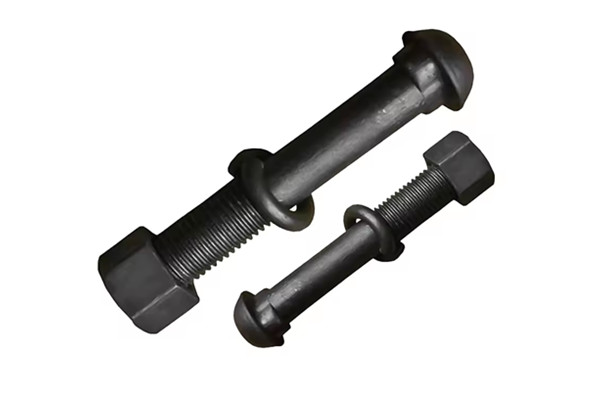

As a professional railway fastener supplier, Kingrail Parts can provide fish bolts for railway fish plate connections.
Our fish bolts are made of high-quality steel, such as ZG45, 40Cr, etc., complying with UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, GB, VALEC, GOSTR-EASC, GB/T or other requirements.
Specification:
Grade: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc.
Size: M12-M24 or according to customer requirements
Length: 45mm-145mm or according to customer requirements
Surface: plain, black, galvanized, or according to customer requirements
Round head oval neck fish bolt
|
Diameter |
Length |
Weight (Kg) |
|
1/2" |
1-3/4" |
0.097 |
|
1/2" |
2" |
0.10 |
|
1/2" |
2-1/4 |
0.112 |
|
5/8 |
2-1/2 |
0.183 |
|
3/4 |
3 |
0.328 |
|
3/4 |
3-1/2 |
0.339 |
|
3/4 |
4 |
0.356 |
|
7/8 |
4-1/2 |
0.559 |
|
7/8 |
5 |
0.593 |
|
1 |
5 |
0.8 |
|
1 |
5-1/2 |
0.839 |
|
1 |
6 |
0.879 |
|
1-1/16 |
6 |
0.995 |
|
1-1/8 |
6-1/2 |
1.186 |
Diamond neck fish bolt
|
Diameter |
Length |
Weight (Kg) |
|
7/8 |
4-1/2 |
0.563 |
|
7/8 |
5-1/2 |
0.651 |
|
1 |
5-1/4 |
0.889 |
|
1 |
5-3/4 |
0.895 |
|
Note: All fish bolt dimensions given in inches. |
||
Contact us
Please contact us for more information and quotes.
