49E1/ S49 rails are mainly used for transport rails and can also be used for underground mining.
Kingrail Parts can produce high -quality and low -unit S49 rails. Weight is 49.39kg/m
Dimensions:
| Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
| 49E1(S49) | 149.00 | 125.00 | 67.00 | 14.00 | 49.39 |

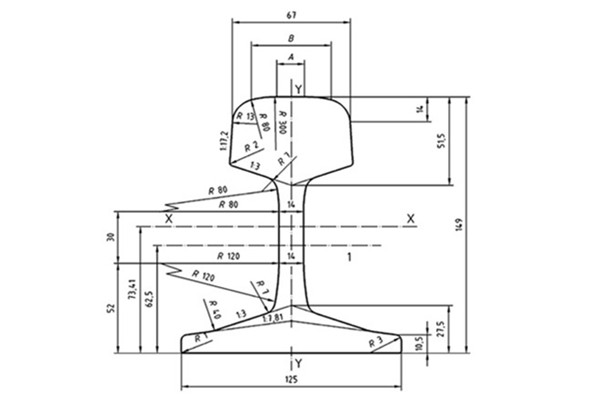

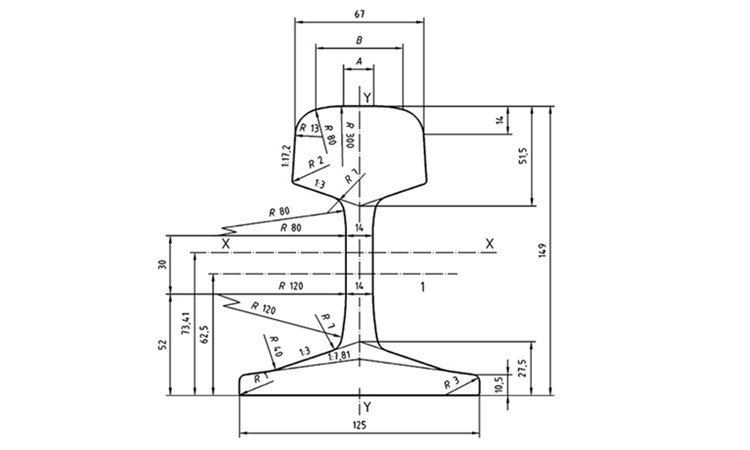

Drawing:
