30LBS rail (ASCE30 rail) is mainly used for the laying of temporary transportation lines and light locomotive lines in forest areas, mining areas, factories, and construction sites.
Kingrail Parts can provide high quality ASCE 30 rail. The materials are Q235 and 55Q, and the lengths are 6m and 8m.
Specification:
Material: 700/Q235
Weight: 15.2kg/m
Length: 6m/8m
Standard: ASTM A1/AREMA
Dimensions
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |

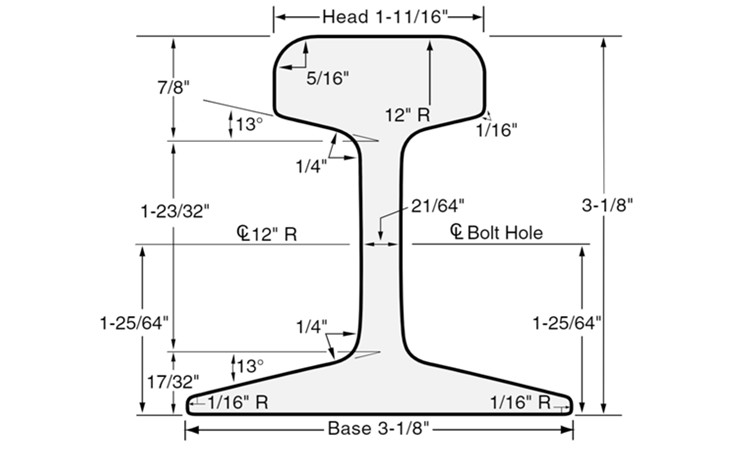

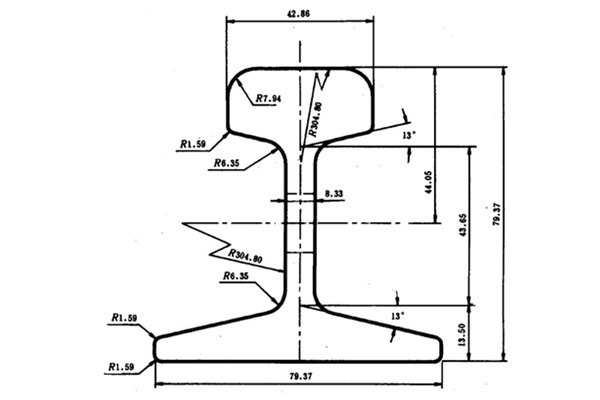

Drawing:
