52 KG Rail Height and Drawings

52kg rails are mostly used for transportation in larger mine tunnels and factory workshops, crane lifting equipment, and the laying of special railway lines.



Kingrail Parts can supply a variety of rails, including light rails, heavy rails (52kg rails), and crane rails of different standards and specifications.



Specification:

Material: 50Mn/U71Mn

Weight: 52KG/M

height: 156mm

Length: 12.5-25m



Rail Type Weight(Kg/m) Material Length(m)
52kg 51.514 50Mn/U7Mn 12.5-25
Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness
70 132 152 15.5

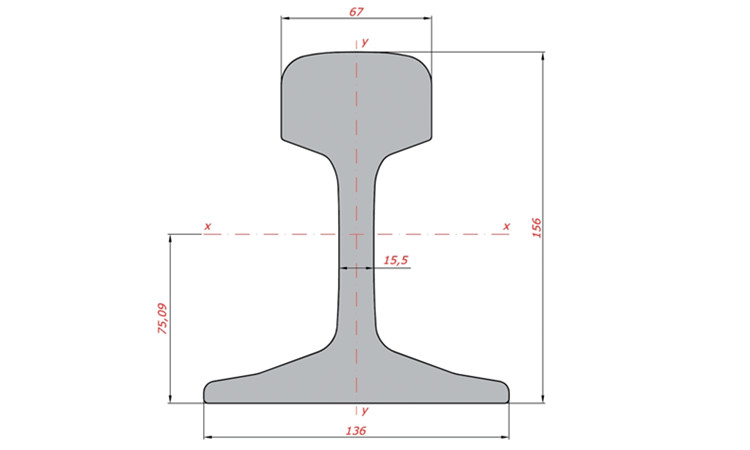

Drawing:
