INTRODUCE :

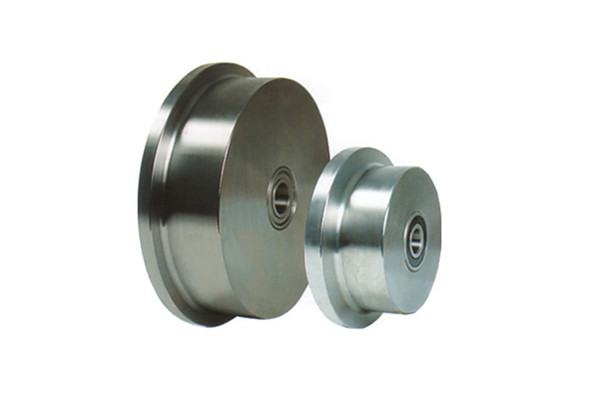

Our heavy-duty cast iron rail wheels and cast iron sheaves are suitable for heavy-duty applications requiring the strength of steel. Our flange wheels and rail wheels are specifically designed to run on rails.
We can also manufacture steel and cast iron wheels to your specifications and application.
SPECIFICATIONS :
KR-3547
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 8-1/8"
Tread diameter: 7-1/4"
Safe working load: 8,500 lbs.
KR-3547-W
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 8-1/8"
Tread diameter: 7-1/4"
Safe working load: 6,500 lbs.
KR-3561
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 9-1/4"
Tread diameter: 8"
Safe working load: 10,500 lbs.
KR-3562
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 9-1/4"
Tread diameter: 8"
Safe working load: 10,500 lbs.
KR-3564
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 9-1/4"
Tread diameter: 8"
Safe working load: 14,000 lbs.
KR-3676
Material: Cast Steel ASTM A915, Grade SC1045
Flange diameter: 12-1/2"
Tread diameter: 11-1/2"
Safe working load: 5,000 lbs.
KR-3688-A
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 12-1/2"
Tread diameter: 11-1/2"
Safe working load: 6,000 lbs.
KR-3688-H
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 12-1/2"
Tread diameter: 11-1/2"
Safe working load: 6,000 lbs.
KR-3548-M
Material: ASTM A29 Steel, Grade 1045
Flange diameter: 8-1/8"
Tread diameter: 7-1/4"
Safe working load: 8,500 lbs.
KR-3562-M
Material: 1040 steel
Flange diameter: 9"
Tread diameter: 8"
Safe working load: 10,500 lbs.
KR-3564-M
Material: 1040 steel
Flange diameter: 9"
Tread diameter: 8"
Safe working load: 14,000 lbs.
KR-3686-M
Material: Machined 1040 Steel
Flange diameter: 14"
Tread diameter: 12"
Safe working load: 60,000 lbs.
KR-3306
Material: 4140 forged steel
Flange diameter: 4"
Tread diameter: 3"
Safe working load: 3,500 lbs.
KR-3317
Material: 1045 forged steel
Flange diameter: 9"
Tread diameter: 7"
Safe working load: 10,500 lbs.
KR-3320
Material: 1045 forged steel
Flange diameter: 9"
Tread diameter: 7"
Safe working load: 12,000 lbs.
Contact us
Please contact us for more information and quotes.
