INTRODUCE :

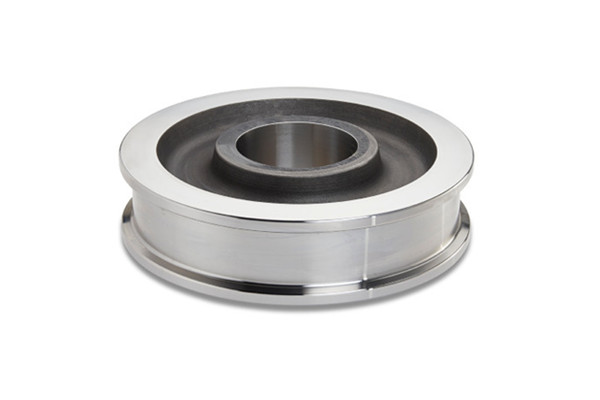

Discover the perfect solution for manufacturing and industrial plant intralogistics with double flange track wheels from Kingrail Parts.
Our double flange wheels are available in four main standard materials including cast iron, ductile iron, forged steel and nylon. Each material is engineered to carry heavy loads and protect your facility's floors.
Kingrail Parts offers custom wheel designs to meet your specific size and material requirements.
SPECIFICATIONS :
KR-3847 Double flange industrial wheel
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 8-1/8"
Tread diameter: 7-1/4"
Safe working load: 8,500 lbs.
KR-3847-W double flange industrial wheel
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 8-1/8"
Tread diameter: 7-1/4"
Safe working load: 6,500 lbs.
KR-3461 double flange industrial steel wheel
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 9-1/4"
Tread diameter: 8"
Safe working load: 10,500 lbs.
KR-3462 double flange industrial steel wheel
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 9-1/4"
Tread diameter: 8"
Safe working load: 10,500 lbs.
KR-3364 industrial steel wheel double flange
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 9-1/4"
Tread diameter: 8"
Safe working load: 14,000 lbs.
KR-3376 industrial steel wheel
Material: Cast Steel ASTM A915, Grade SC1045
Flange diameter: 12-1/2"
Tread diameter: 11-1/2"
Safe working load: 5,000 lbs.
KR-3288-A double flange industrial steel wheel
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 12-1/2"
Tread diameter: 11-1/2"
Safe working load: 6,000 lbs.
KR-3288-H double flange steel industrial wheel
Material: Cast Steel ASTM A915, Grade SC1040
Flange diameter: 12-1/2"
Tread diameter: 11-1/2"
Safe working load: 6,000 lbs.
KR-3148-M machined double flange wheel
Material: ASTM A29 Steel, Grade 1045
Flange diameter: 8-1/8"
Tread diameter: 7-1/4"
Safe working load: 8,500 lbs.
KR-3162-M Machined Double Flange Industrial Wheel
Material: 1040 steel
Flange diameter: 9"
Tread diameter: 8"
Safe working load: 10,500 lbs.
KR-3764-M Machined Steel Industrial Wheel
Material: 1040 steel
Flange diameter: 9"
Tread diameter: 8"
Safe working load: 14,000 lbs.
KR-3986-M Machined Steel Industrial Wheel
Material: Machined 1040 Steel
Flange diameter: 14"
Tread diameter: 12"
Safe working load: 60,000 lbs.
Contact us
Please contact us for more information and quotes.
