INTRODUCE :

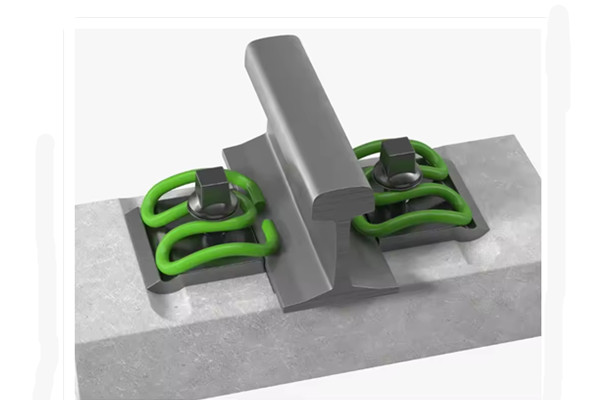

A rail fastening system is a set of fasteners used to connect rails to sleepers. As a professional manufacturer, Kingrail Parts can provide a complete set of SKL rail fastening systems.
The components of our SKL rail fastening system include SKL rail clips, tie plates, screw spikes, rubber pads, washers, plastic pins, rail bolts and nuts. The common specifications of our SKL rail fastening system are SKL 12, SKL 14, SKL 3 rail fastening system, etc.
SPECIFICATIONS :
Specifications:
|
Item included |
Quantity |
Material |
Size |
Remark |
|
SKL tension clip |
2 |
60Si2CrA, 60Si2CrA, 38Si7 |
skl1,skl3,skl12,skl14 |
Hardness: 42-47HRC 5 millions cycles without breaking. Standard: DIN17221, GB/T1222 |
|
Ss35 screw spike |
2 |
Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45# |
M24×150mm |
Standard: ISO898-1, UIC864-1 and NF F500-50 |
|
Flat washer |
2 |
Q235 |
Uls7 |
Standard: EN10025, EN10139 |
|
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |
For different sizes of screw spike |
To insert into concrete sleeper |
|
Insulator |
2 |
Reinforced Nylon 66 (PA66) |
UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered |
Customized products available. |
|
Rail pad |
1 |
EVA, or rubber |
|
