The crane rail A55 is made in line with the European standard DIN 536 P1: 1991, and the mass is 31,80 kg/m.
Dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| A55 | DIN 536 | 65 | 150 | 55 | 31 | 40,50 | 31,80 |

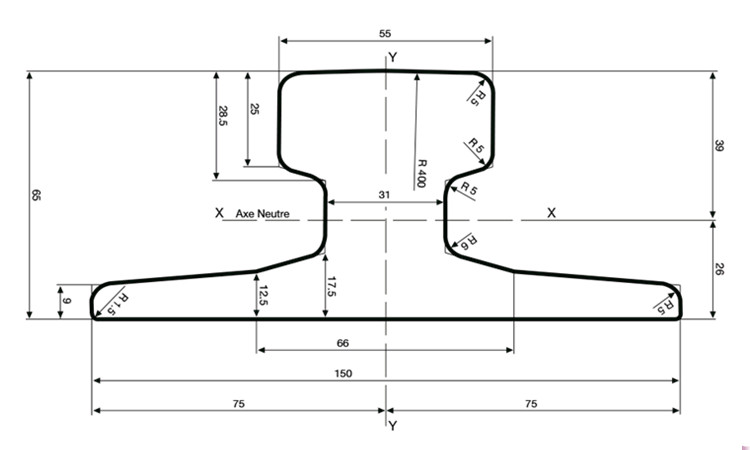

Drawing:
A55 Rail Dimensions and Drawings
