QU120 crane rail is used for crane trolley, lifting trolley. The length is 12 meters, the material U71MN.
Kingrail Parts can provide QU120 rail and related fasteners. For example: weldable rail clips and rubber pads, etc.
Specification:
Material: U71Mn
Weight: 118.1KG/M
Length: 12m
Standard: YB/T5055-93
| QU120 Rail Parameters | |||
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| QU120 | 118.1 | U71Mn | 12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 120 | 170 | 170 | 44 |

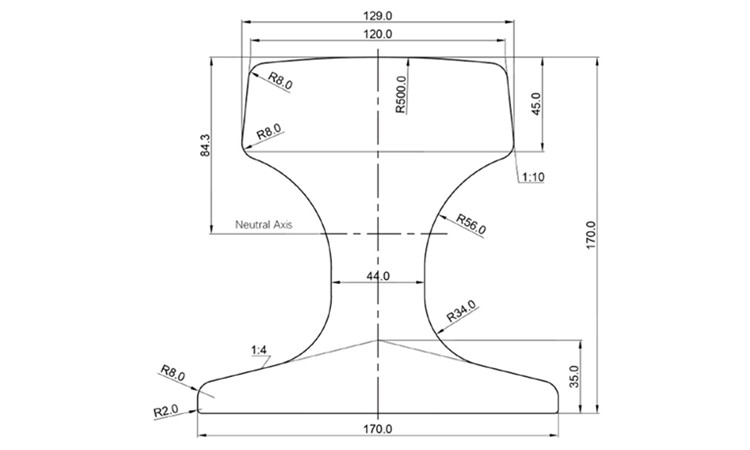

Drawing:
