The A65 crane rail is mainly used for the crane industry and port as the crane rail.
Kingrail Parts can provide DIN536 standard crane rails, including A45 crane rails, A55 crane rails, A65 crane rails, A75 crane rails, A100 crane rails, A120 crane rails, A150 crane rails, etc.
Specification:
Size: A65 crane rails
Length: 12m ~ 25m or other lengths according to customer requirements
Material: 900A, 50mn
Standard: DIN 536 P1: 1991
|
Size |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
|
A65 |
75 |
175 |
65 |
38 |
43.10 |

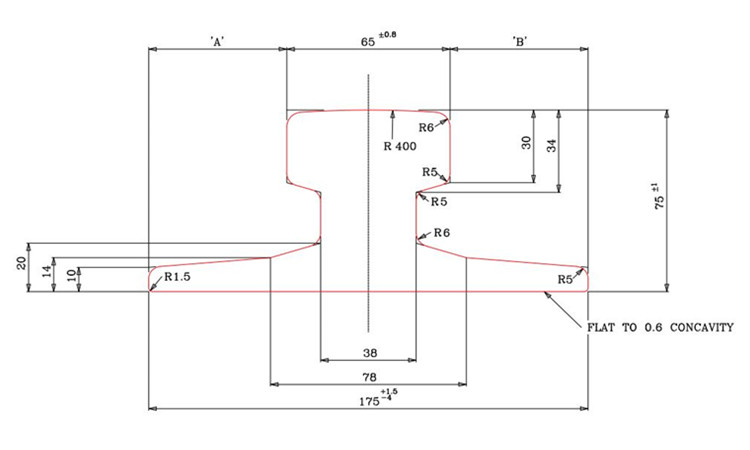

Drawing:
