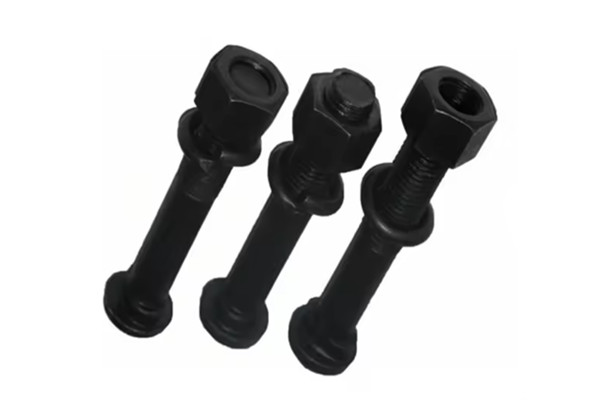

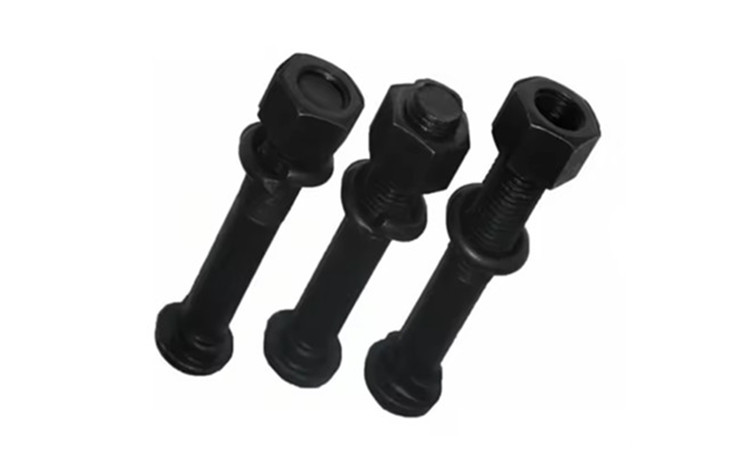

As a professional railway fastener supplier, Kingrail Parts can provide fish bolts for railway fish plate connections.
Our fish bolts are made of high-quality steel, such as ZG45, 40Cr, etc., complying with UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, GB, VALEC, GOSTR-EASC, GB/T or other requirements.
Specification:
Grade: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc.
Size: M12-M24 or according to customer requirements
Length: 45mm-145mm or according to customer requirements
Surface: plain, black, galvanized, or according to customer requirements
Round head oval neck fish bolt
| Diameter | Length | Weight (Kg) |
|---|---|---|
| 1/2" | 1-3/4" | 0.097 |
| 1/2" | 2" | 0.10 |
| 1/2" | 2-1/4 | 0.112 |
| 5/8 | 2-1/2 | 0.183 |
| 3/4 | 3 | 0.328 |
| 3/4 | 3-1/2 | 0.339 |
| 3/4 | 4 | 0.356 |
| 7/8 | 4-1/2 | 0.559 |
| 7/8 | 5 | 0.593 |
| 1 | 5 | 0.8 |
| 1 | 5-1/2 | 0.839 |
| 1 | 6 | 0.879 |
| 1-1/16 | 6 | 0.995 |
| 1-1/8 | 6-1/2 | 1.186 |
Diamond neck fish bolt
| Diameter | Length | Weight (Kg) |
|---|---|---|
| 7/8 | 4-1/2 | 0.563 |
| 7/8 | 5-1/2 | 0.651 |
| 1 | 5-1/4 | 0.889 |
| 1 | 5-3/4 | 0.895 |
| Note: All fish bolt dimensions given in inches. | ||
Contact us
Please contact us for more information and quotes.
