JIS37A rail is one of the heavy-duty rails. It is mostly used for transportation in larger mine tunnels and factory workshops, crane lifting equipment, and the laying of special railway lines.
Kingrail Parts can produce a wide range of rails. Our JIS E1101 JIS37A rails are produced according to Japanese standards.
Specification:
Type: heavy rail
Material: U71Mn
Weight: 37.2kg/m
Length: 10-25m
Standard: JIS E1103-93/JIS E1101-93
Profile:
| Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
| 37kg(37A) | 122.24 | 122.24 | 62.71 | 13.49 | 37.20 |

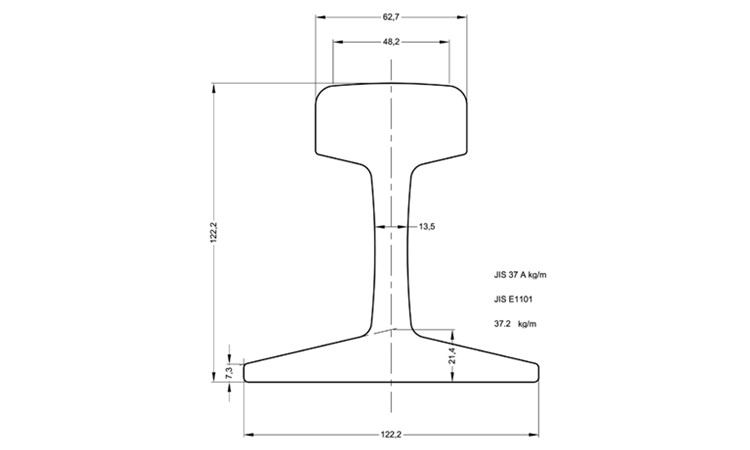

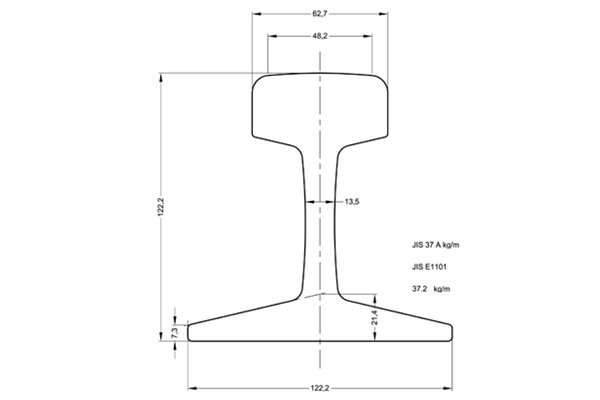

Drawing:
