The manufacturing of the A100 crane rail conforms to the European standard DIN 536 P1: 1991.
The mass of the crane rail A100 is 74,30 kg/m. The standard length is 10-12m.
Specification:
Type: A100 RAIL
Material: 700/900A/1100
Weight: 74.3kg/m
Standard: din536-1-1991
| Profile | Standard | Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| A100 | DIN 536 | 95 | 200 | 100 | 60 | 94,70 | 74,30 |

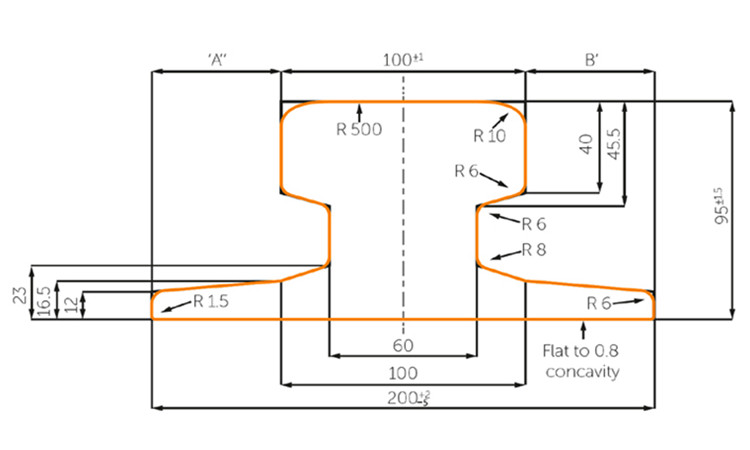

Drawing:
