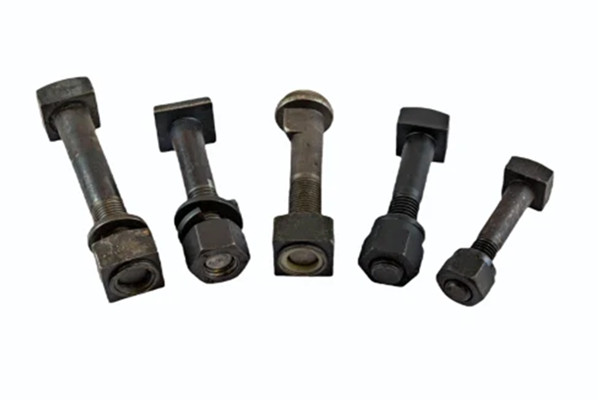

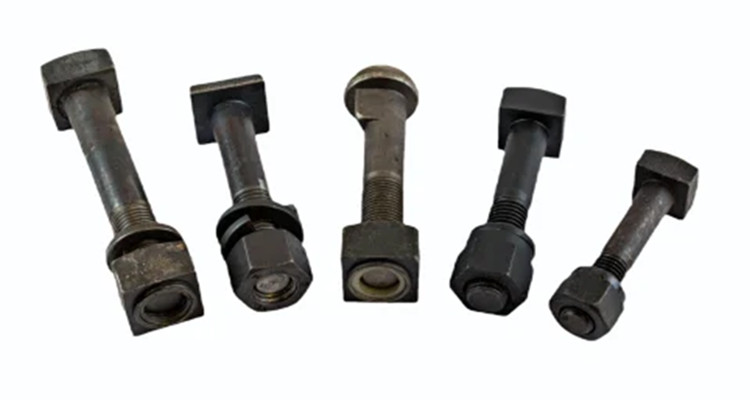

Railway fish bolts are used for rail joint connections in railway systems.
As a professional rail fastener manufacturer, Kingrail Parts can manufacture and supply a range of fish bolts according to various standards, such as BS, GB, ASTM, AREMA and DIN, etc.
We can also customize fish bolts according to customer specifications and drawings.
Specifications
Standards: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS, etc.
Grades: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc.
Size: M12-M24 or as required by customers
Length: 45mm-145mm or as required by customers
Surface: natural color, black, galvanized, or as required by customers
Button Head Oval Neck Fish Bolt
|
Diameter |
Length |
Weight (Kg) |
|
1/2" |
1-3/4" |
0.097 |
|
1/2" |
2" |
0.10 |
|
1/2" |
2-1/4 |
0.112 |
|
5/8 |
2-1/2 |
0.183 |
|
3/4 |
3 |
0.328 |
|
3/4 |
3-1/2 |
0.339 |
|
3/4 |
4 |
0.356 |
|
7/8 |
4-1/2 |
0.559 |
|
7/8 |
5 |
0.593 |
|
1 |
5 |
0.8 |
|
1 |
5-1/2 |
0.839 |
|
1 |
6 |
0.879 |
|
1-1/16 |
6 |
0.995 |
|
1-1/8 |
6-1/2 |
1.186 |
Diamond neck fish bolt
|
Diameter |
Length |
Weight (Kg) |
|
7/8 |
4-1/2 |
0.563 |
|
7/8 |
5-1/2 |
0.651 |
|
1 |
5-1/4 |
0.889 |
|
1 |
5-3/4 |
0.895 |
|
Note: All fish bolt dimensions given in inches. |
||
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, with 120 workers and 20 technicians
2. Our railway products meet international standards such as BS, UIC, DIN, etc.
3. ISO9001-2008 certified
4. Customized according to your specific requirements.
5. Our railway products are exported to Asia, Europe, America and other places.
Get more help
If you have a railway construction project, please contact us. We can provide you with the best track pad solution.
